925076
ActiveTE Connectivity AMP Connectors

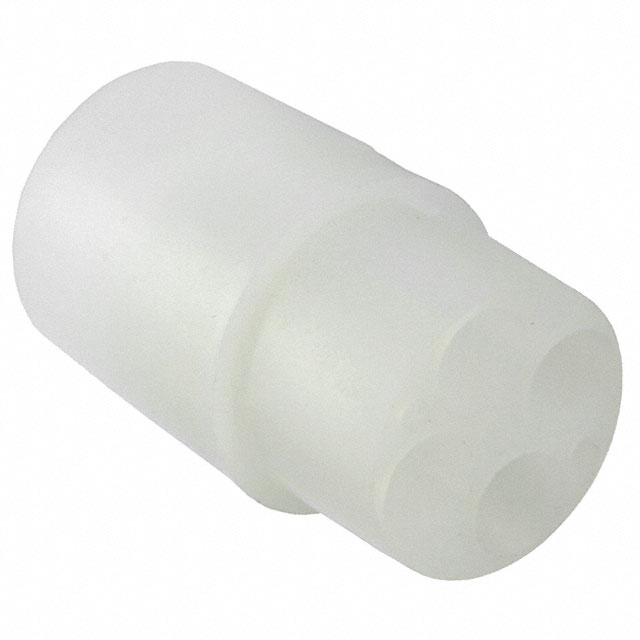

CONN PLUG HSNG FMALE 4POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
925076
ActiveTE Connectivity AMP Connectors
CONN PLUG HSNG FMALE 4POS INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 925076 | 9250 Series |
|---|---|---|
| Color | - | Natural |
| Connector Type | Plug Housing | Plug Housing, Cap Housing |
| Contact Shape | Circular | Circular |
| Contact Type | Crimp | Crimp |
| Fastening Type | Push-Pull | Push-Pull |
| For Use With/Related Products | - | Quick Connects |
| For Use With/Related Products | - | 0.11 - 0.25 in |
| For Use With/Related Products | - | 2.79 - 6.35 mm |
| Gender | - | Female, Receptacle |
| Housing Color | Natural | Natural |
| Material | - | Polyamide (PA66), Nylon 6/6, Polyamide (PA), Nylon, Polyamide |
| Material Flammability Rating | UL94 V-2 | UL94 V-2 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 4 | 1 - 4 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | Keyed | Keyed |
| Shell Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Shielding | Unshielded | Unshielded |
| Stacking Direction | - | Side to Side |
| Style | - | Housing |
| Terminal Size | - | 0.11 - 0.25 in |
| Terminal Size | - | 2.79 - 6.35 mm |
| Terminal Type | - | Disconnect, Quick Connect |
| Type | For Female Sockets | For Female Sockets, For Male Pins |
9250 Series
CONN RCPT HSG 0.11 3POS NATURAL
| Part | Stacking Direction | Material | Note | Terminal Type | Mounting Type | Terminal Size | Terminal Size | For Use With/Related Products | For Use With/Related Products | For Use With/Related Products | Color | Gender | Style | Shielding | Housing Color | Shell Material | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Orientation | Material Flammability Rating | Contact Shape | Connector Type | Type | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 925015 | Side to Side | Polyamide (PA66), Nylon 6/6 | Contacts Not Included | Disconnect, Quick Connect | Free Hanging (In-Line) | 0.11 in | 2.79 mm | Quick Connects | 0.11 in | 2.79 mm | Natural | Female, Receptacle | Housing | |||||||||||||
TE Connectivity AMP Connectors 925076 | Contacts Not Included | Free Hanging (In-Line) | Unshielded | Natural | Polyamide (PA66), Nylon 6/6 | 4 | 105 ░C | -55 °C | Push-Pull | Keyed | UL94 V-2 | Circular | Plug Housing | For Female Sockets | Crimp | |||||||||||
TE Connectivity AMP Connectors 925016 | Side to Side | Polyamide (PA), Nylon | Contacts Not Included | Disconnect, Quick Connect | Free Hanging (In-Line) | 0.11 in | 2.79 mm | Quick Connects | 0.11 in | 2.79 mm | Natural | Female, Receptacle | Housing | 4 | ||||||||||||
TE Connectivity AMP Connectors 925075 | Contacts Not Included | Free Hanging (In-Line) | Unshielded | Natural | Polyamide (PA66), Nylon 6/6 | 4 | 105 ░C | -55 °C | Push-Pull | Keyed | Circular | Cap Housing | For Male Pins | Crimp | ||||||||||||
TE Connectivity AMP Connectors 925068 | Polyamide | Contacts Not Included | Disconnect, Quick Connect | Free Hanging (In-Line) | 0.25 in | 6.35 mm | Quick Connects | 0.25 in | 6.35 mm | Natural | Female, Receptacle | Housing | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.46 | |
| 10 | $ 0.43 | |||
| 500 | $ 0.30 | |||
| 1000 | $ 0.27 | |||
| 5000 | $ 0.24 | |||
| 10000 | $ 0.22 | |||
Description
General part information
9250 Series
4 Position Circular Connector Plug Housing Free Hanging (In-Line)
