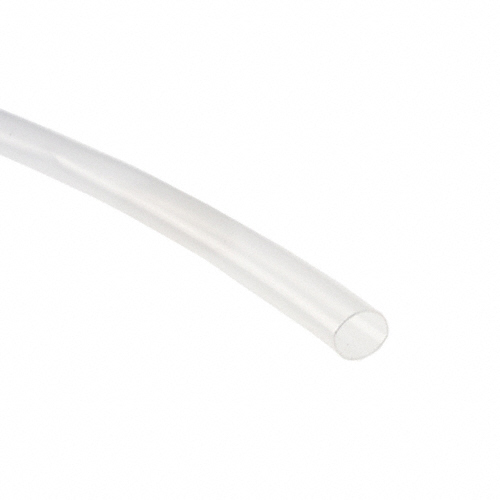

RW-175-1/16-X-STK

Unknown

TE Connectivity Raychem Cable Protection

HEATSHRINK 1/16" X 4' CLEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRW-175 Flyer Datasheet

RW-175-1/16-X-STK

Unknown

TE Connectivity Raychem Cable Protection

HEATSHRINK 1/16" X 4' CLEAR

Deep-Dive with AI

DocumentsRW-175 Flyer Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RW-175-1/16-X-STK

Color	Clear
Features	Cut-Through Resistant, Abrasion Resistant, Fluid Resistant, Flame Retardant, Chemical Resistant
Inner Diameter - Recovered [diameter]	0.79 mm
Inner Diameter - Recovered [diameter]	0.031 in
Inner Diameter - Supplied [diameter]	0.063 in
Inner Diameter - Supplied [diameter]	1.6 mm
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyvinylidene Fluoride (PVDF)
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.01 in
Recovered Wall Thickness	0.25 mm
Shelf Life	144 Months
Shrink Temperature	175 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	35 °C
Storage/Refrigeration Temperature [Min]	0 °C
Type	Tubing, Semi Rigid

RW-175 Series

Part	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Color	Material	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Type	Shelf Life	Shrink Temperature	Features	Shrinkage Ratio	Length	Length	Length [x]	Length [x]	Inner Diameter - Recovered	Inner Diameter - Recovered	Length	Shrinkage Ratio [Max]	Shrinkage Ratio [Min]
TE Connectivity Raychem Cable Protection RW-175-030-X-SP	0.014 in	0.36 mm	-55 °C	347 °F	35 °C	0 °C	Clear	Polyvinylidene Fluoride (PVDF)	0.008 in	0.2 mm	0.031 in	0.79 mm	Tubing Semi Rigid	144 Months	175 °C	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Fluid Resistant	2 to 1
TE Connectivity Raychem Cable Protection RW-175-3/16-0-SP
TE Connectivity Raychem Cable Protection NB31194001	0.375 in	9.53 mm	-55 °C	347 °F	35 °C	0 °C	Clear	Polyvinylidene Fluoride (PVDF)	0.017 in	0.43 mm			Tubing Semi Rigid	144 Months	175 °C	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Fluid Resistant	2 to 1	1500 m	4921.3 ft
TE Connectivity Raychem Cable Protection RW-175-1/16-X-STK	0.031 in	0.79 mm	-55 °C	347 °F	35 °C	0 °C	Clear	Polyvinylidene Fluoride (PVDF)	0.01 in	0.25 mm	0.063 in	1.6 mm	Tubing Semi Rigid	144 Months	175 °C	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Fluid Resistant	2 to 1			1.22 m	4 ft
TE Connectivity Raychem Cable Protection RW-175-3/16-X-SP			-55 °C	347 °F	35 °C	0 °C	Clear	Polyvinylidene Fluoride (PVDF)	0.01 in	0.25 mm	0.187 in	4.75 mm	Tubing Semi Rigid	144 Months	175 °C	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Fluid Resistant	2 to 1					2.36 mm	0.093 in
TE Connectivity Raychem Cable Protection RW-175-3/16-X-CS-34034
TE Connectivity Raychem Cable Protection RW-175-E-1-X-STK
TE Connectivity Raychem Cable Protection RW-175-NO.33-X-SP			-55 °C	347 °F	35 °C	0 °C	Clear	Polyvinylidene Fluoride (PVDF)					Tubing Semi Rigid	144 Months	175 °C	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Fluid Resistant	2 to 1
TE Connectivity Raychem Cable Protection RW-175-1/4-X-1IN	0.125 in		-55 °C	347 °F	35 °C	0 °C	Clear	Polyvinylidene Fluoride (PVDF)	0.013 in	0.33 mm	0.25 in	6.35 mm	Tubing Semi Rigid	144 Months	175 °C	Abrasion Resistant Chemical Resistant Cut-Through Resistant Flame Retardant Fluid Resistant	2 to 1	25.4 mm	0.083 ft			3.18 mm		1 in
TE Connectivity Raychem Cable Protection RW-175-NR537-X-SP			-55 °C	347 °F			Clear	Polyvinylidene Fluoride (PVDF)					Tubing Semi Rigid		175 °C					1.22 m	4 ft				2.1	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RW-175 Series

Heat Shrink Tubing, Semi Rigid 0.063" (1.60mm) 2 to 1 Clear 4.00' (1.22m)
