8281B 0101000

Active

Belden Inc.

#20 FRSFPE DBLB FRPVC

Search across all available documentation for this part.

Active

Belden Inc.

#20 FRSFPE DBLB FRPVC

Technical Specifications

Parameters and characteristics for this part

Specification	8281B 0101000

Cable Group	RG-59
Cable Type	Coaxial
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.198 in
Dielectric Diameter [diameter]	5.03 mm
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	0.305 in
Jacket (Insulation) Diameter [diameter]	7.75 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Coverage	95 %
Shield Material	Copper, Tinned
Shield Type	Double Braid
Usage	Video
Wire Gauge	20 AWG

Part	Wire Gauge	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Shield Type	Jacket Color	Impedance	Conductor Material	Jacket (Insulation) Material	Conductor Strand	Cable Type	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Length	Length	Cable Group
Belden Inc. 8281B 0101000	20 AWG	Video	0.305 in	7.75 mm	95 %	Copper Tinned	-40 °C	80 C	Double Braid	Black	75 Ohms	Copper Bare	Poly-Vinyl Chloride (PVC)	Solid	Coaxial	0.198 in	5.03 mm	304.8 m	1000 ft	RG-59

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.51

General part information

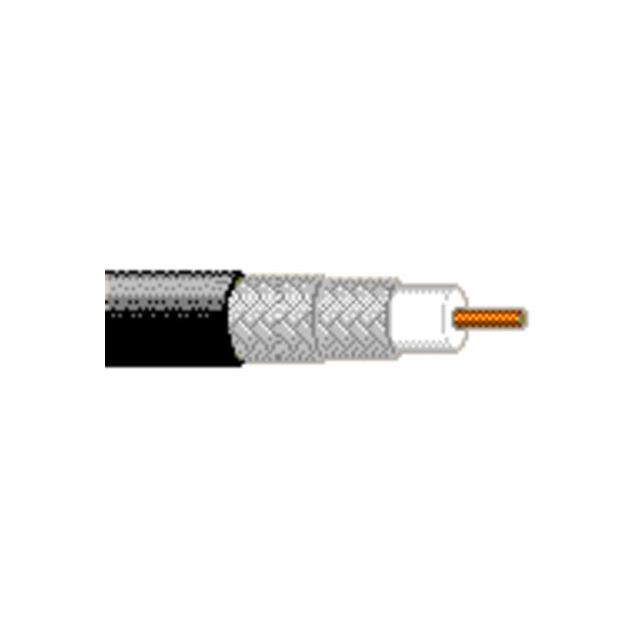

Coaxial Cable 20 AWG RG-59 1000.0' (304.80m) 75 Ohms
