XB6ECA11P
ObsoleteSCHNEIDER ELECTRIC
MONOLITHIC PUSH BUTTON, HARMONY
XB6ECA11P
ObsoleteSCHNEIDER ELECTRIC
MONOLITHIC PUSH BUTTON, HARMONY
Description
General part information
XB6ECA11P

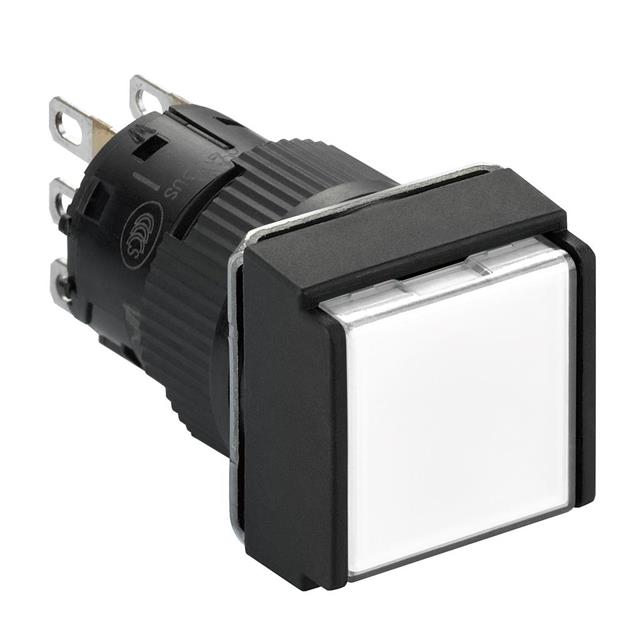

Pushbutton Switch SPDT Standard Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | XB6ECA11P |
|---|---|
| Actuator Type | Square, Button |
| Circuit | SPDT |
| Color - Actuator/Cap | White |
| Current Rating | 1.5 A, 1 A |
| Electrical Life (Cycles) | 100000 Cycles |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -10 °C |
| Panel Cutout Diameter | 16 mm |
| Panel Cutout Shape | Circular |
| Quick Connect Size (0.110") | 0.11 in |
| Switch Function | On-On |
| Termination Style | Quick Connect |
| Type | Standard |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 24 V |
