Description
General part information

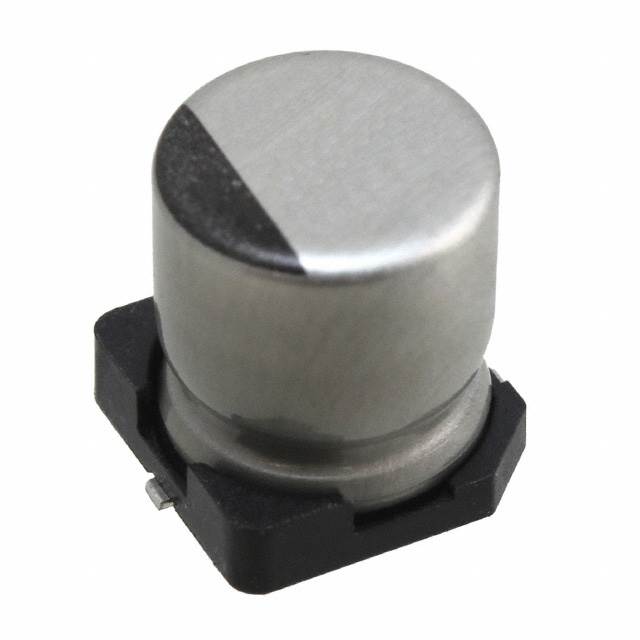

UCB1V220MCL1GS
22 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 7000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UCB1V220MCL1GS |
|---|---|
| Applications | General Purpose |
| Capacitance | 22 µF |
| Height - Seated (Max) | 0.276 in |
| Lifetime | 7000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Ripple Current | 42 mA, 63 mA |
| Size / Dimension Diameter | 0.248 in |
| Surface Mount Land Length | 0.26 in |
| Surface Mount Land Width | 0.26 in |
| Tolerance | 20 % |
| Voltage - Rated | 35 V |
