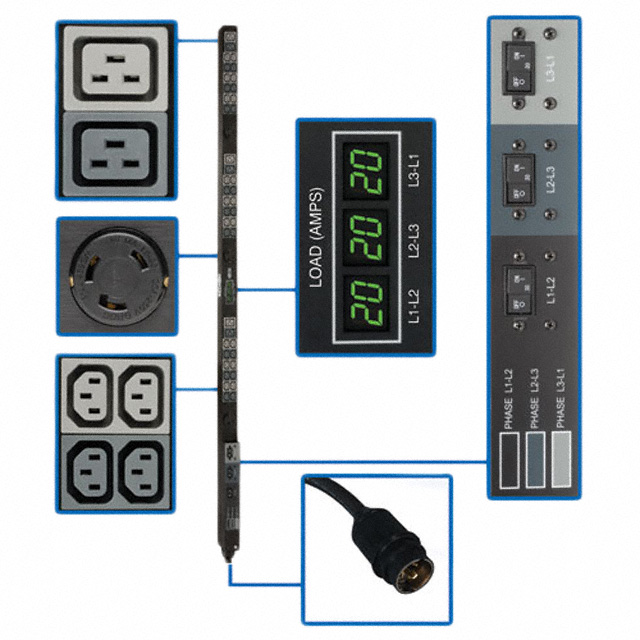

PDU3MV6H50A
ActiveEaton Tripp Lite
POWER DISTRIBUTION, THREE PHASE, 45 OUTLETS, 208 V, 40 A, 1.8 MM, 67.3 MM, 1.8 M
PDU3MV6H50A
ActiveEaton Tripp Lite
POWER DISTRIBUTION, THREE PHASE, 45 OUTLETS, 208 V, 40 A, 1.8 MM, 67.3 MM, 1.8 M
Description
General part information
PDU3MV6H50A
POWER DISTRIBUTION, THREE PHASE, 45 OUTLETS, 208 V, 40 A, 1.8 MM, 67.3 MM, 1.8 M
Technical Specifications
Parameters and characteristics for this part
| Specification | PDU3MV6H50A |
|---|---|
| AC Outlets (Count) | 45 count |
| Approval Agency | NOM, UL |
| Connector - AC Input | CS8365C |
| Connector - AC Output | NEMA L6-30R, C19, IEC 320-C13 |
| Connector - AC Output Quantity (C19) | 6 pcs |
| Connector - AC Output Quantity (IEC 320-C13) | 36 pcs |
| Connector - AC Output Quantity (NEMA L6-30R) | 3 pcs |
| Cord Length | 6 ft |
| Current - Max | 40 A |
| Features | Load Meter |
| Housing Material | Steel |
| Mounting Type | Rack, Vertical |
| Overload Protection | Circuit Breaker(s) |
| Type | PDU (Power Distribution Unit) |
| Voltage - Input | 208 VAC |
