Description
General part information

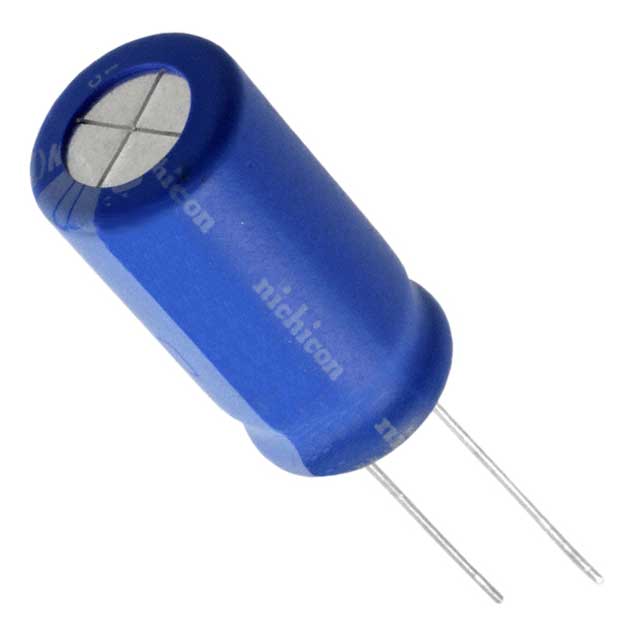

UBW1A222MHD1TO
2200 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 135°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UBW1A222MHD1TO |
|---|---|
| Applications | Automotive |
| Capacitance | 2200 ĄF |
| Height - Seated (Max) | 1.063 in |
| Impedance | 33 mOhm |
| Lead Spacing | 0.197 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 135 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 1.75 A, 1.173 A |
| Size / Dimension Diameter | 0.492 in |
| Tolerance | 20 % |
| Voltage - Rated | 10 V |
