5745.2
ActiveAltech Corporation
INTERFACE MOD DSUB FML 9 POS
5745.2
ActiveAltech Corporation
INTERFACE MOD DSUB FML 9 POS
Description
General part information
5745.2

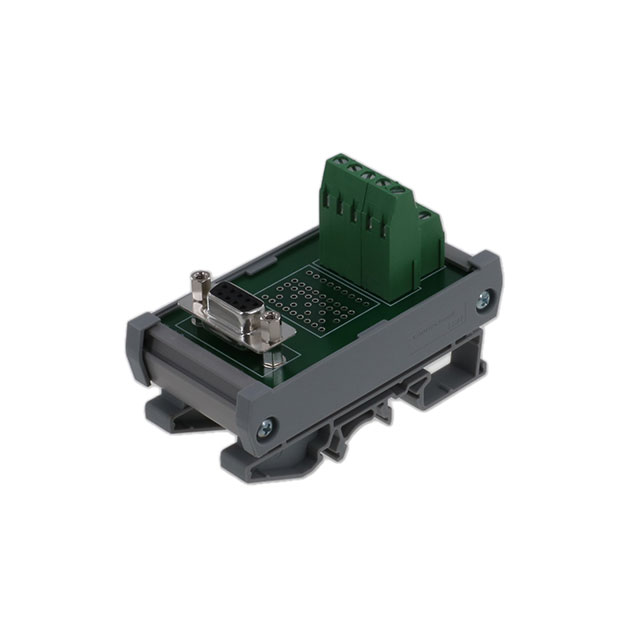

9 Position Interface Module Terminal Blocks - Screw Connection To D-Sub, Female 12-22 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 5745.2 |
|---|---|
| Control Side Cable Retainer Type | Jackscrew Socket |
| Control Side Connection Gender | Female |
| Control Side Connection Shape | D-Sub |
| Current Rating (Per Contact) | 4 A |
| Length | 3.43 in |
| Positions / Poles | 9 |
| Process Side Connection | Terminal Blocks, Screw Connection |
| Voltage - Rated | 250 V |
| Width | 1.77 in |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
