FMCA1308-60
ActiveFairview Microwave

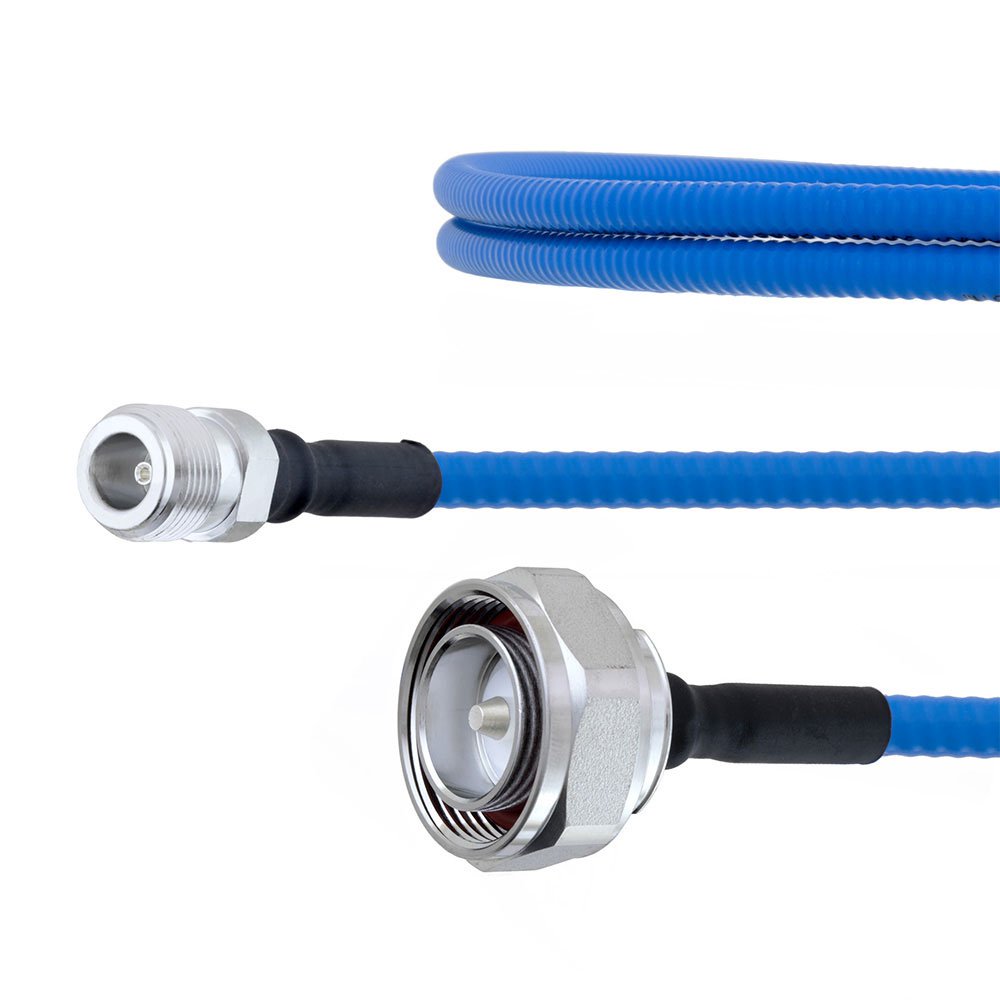

CBL ASSY TYPE NJACK-7/16 DINPLUG
FMCA1308-60
ActiveFairview Microwave
CBL ASSY TYPE NJACK-7/16 DINPLUG
Description
General part information
FMCA1308-60
Cable Assembly Coaxial
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA1308-60 |
|---|---|
| 1st Connector | 7/16 Plug |
| 1st Connector - Type | Plug |
| 1st Connector Dimension (1) | 7 mm |
| 1st Connector Dimension (2) | 16 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | SPP, 250LLPL |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 1524 mm |
| Length (ft) | 5 ft |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | 7/16 DIN to N-Type |
