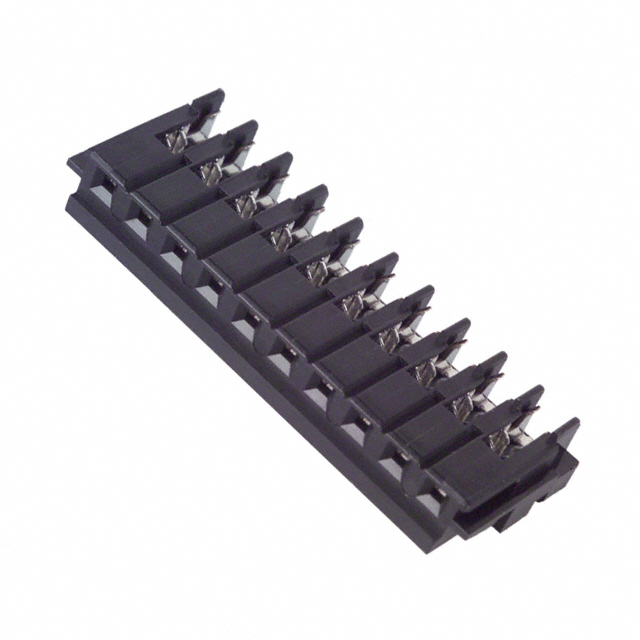

10HR-4K
ObsoleteJST Sales America Inc.
CONN RCPT 10POS IDC 24AWG TIN
10HR-4K
ObsoleteJST Sales America Inc.
CONN RCPT 10POS IDC 24AWG TIN
Description
General part information
10HR-4K
10 Position Rectangular Receptacle Connector IDC Tin 24 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 10HR-4K |
|---|---|
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Receptacle |
| Contact Finish | Tin |
| Contact Type | Female Socket |
| Fastening Type | Detent Lock |
| Features | Closed End |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Pitch | 0.098 in |
| Wire Gauge | 24 AWG |
| Wire Type | Discrete |
