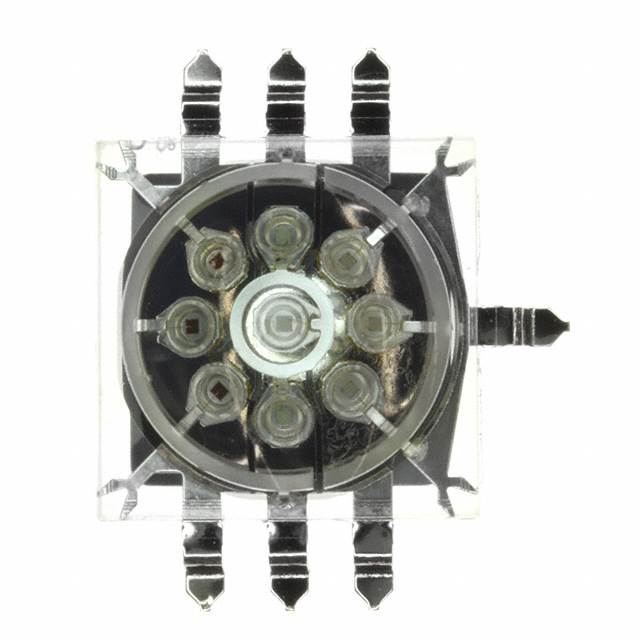

Specification	OVTL09LG3M

Color	Blue (RGB), Green, Red
Current - Max (Blue)	1.05 A
Current - Max (Green)	1.05 A
Current - Max (Red)	1.05 A
Current - Max Colors	Blue, Green, Red
Current - Test (Blue)	1.05 A
Current - Test (Green)	1.05 A
Current - Test (Red)	1.05 A
Current - Test Colors	Red, Blue, Green
Height - Seated (Max)	0.341 in
Lumens/Watt (Blue)	31 lm/W
Lumens/Watt (Green)	31 lm/W
Lumens/Watt (Red)	31 lm/W
Lumens/Watt Color	Red, Blue, Green
Luminous Flux (Blue)	300 lm
Luminous Flux (Green)	300 lm
Luminous Flux (Red)	300 lm
Luminous Flux Colors	Blue, Red, Green
Mounting Type	Surface Mount
Package Leads	7 Leads
Package Name	8-SMD, SMD
Size / Dimension Length	1.148 in
Size / Dimension Width	1.148 in
Temperature - Test	25 °C
Thermal Resistance of Package	2.5 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ) (Blue)	9.2 V
Voltage - Forward (Vf) (Typ) (Green)	9.2 V
Voltage - Forward (Vf) (Typ) (Red)	9.2 V
Voltage - Forward (Vf) (Typ) Color	Red, Blue, Green
Wavelength (Blue)	460 nm
Wavelength (Green)	515 nm
Wavelength (Red)	625 nm
Wavelength Colors	Green, Blue, Red
