Description
General part information

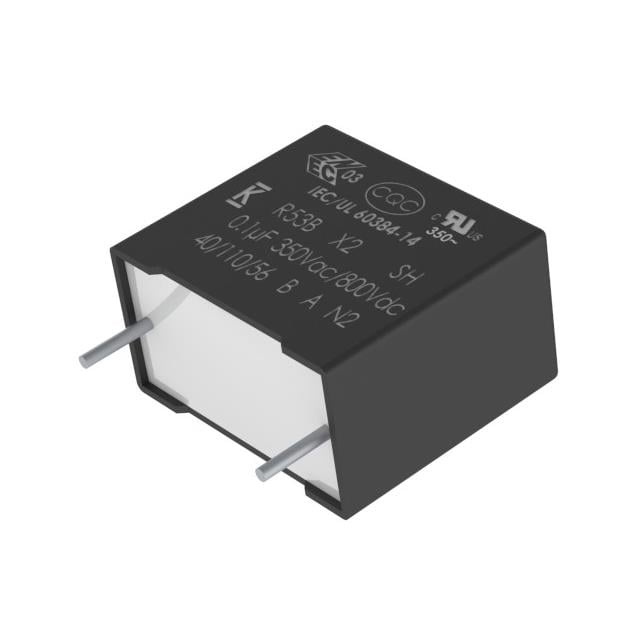

R53BR3820JE00K
CAP FILM SAFETY/EMI SUPP
Technical Specifications
Parameters and characteristics for this part
| Specification | R53BR3820JE00K |
|---|---|
| Applications | EMI, Automotive, RFI Suppression |
| Capacitance | 0.82 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 0.799 in |
| Lead Spacing | 1.083 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Ratings | X2, AEC-Q200 |
| Size / Dimension Length | 1.26 in |
| Size / Dimension Width | 0.433 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 350 VAC |
| Voltage Rating - DC | 800 V |
