MINISMDC350LR-2
ObsoleteLITTELFUSE
PTC RESET FUSE 6V 3.5A 1812
MINISMDC350LR-2
ObsoleteLITTELFUSE
PTC RESET FUSE 6V 3.5A 1812
Description
General part information
MINISMDC350LR-2

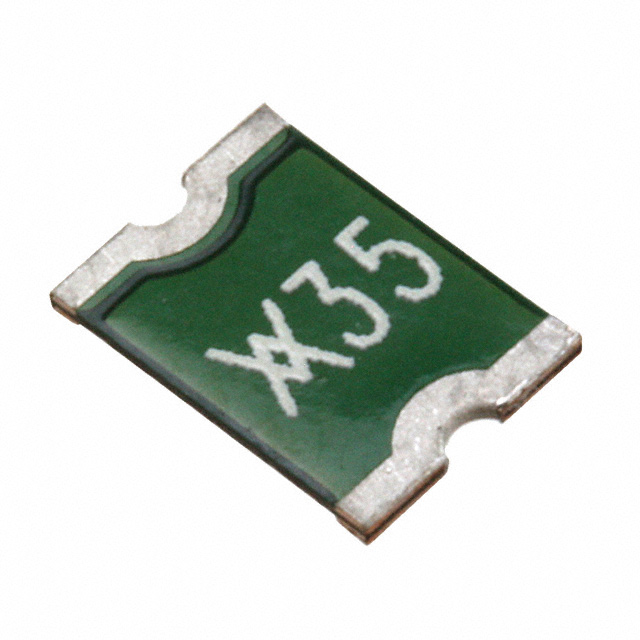

Polymeric PTC Resettable Fuse 6V 3.5 A Ih Surface Mount 1812 (4532 Metric), Concave
Technical Specifications
Parameters and characteristics for this part
| Specification | MINISMDC350LR-2 |
|---|---|
| Current - Hold (Ih) (Max) | 3.5 A |
| Current - Max | 50 A |
| Current - Trip (It) | 8 A |
| Mounting Type | Surface Mount |
| Package / Case | Concave, 1812 (4532 Metric) |
| Package Features | Concave |
| Package Name | 1812 |
| Resistance - Initial (Ri) (Min) | 6 mOhms |
| Resistance - Post Trip (R1) (Max) | 25 mOhms |
| Size / Dimension Length | 0.179 in |
| Size / Dimension Width | 0.128 in |
| Thickness (Max) | 0.017 in |
| Type | Polymeric |
| Voltage - Max | 6 V |
