Description
General part information

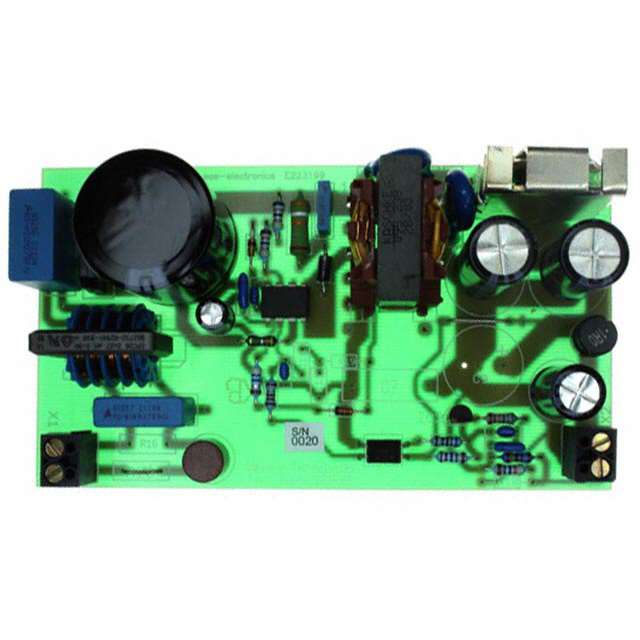

EVALSF2-ICE2A365
ICE2A365 CoolSET®F2 AC/DC, Primary Side 1, Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | EVALSF2-ICE2A365 |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output | 2.5 A |
| Isolated Output Count | 1 |
| Main Purpose | Primary Side, AC/DC |
| Output Type | Isolated |
| Power - Output | 40 W |
| Regulator Topology | Flyback |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | ICE2A365 |
| Voltage - Input (AC) Maximum | 270 VAC |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Output | 16 VAC |
