972356106
ActiveAltech Corporation
TEST SOCKET SEB 2620 GRY 4MM TES
972356106
ActiveAltech Corporation
TEST SOCKET SEB 2620 GRY 4MM TES
Description
General part information
972356106

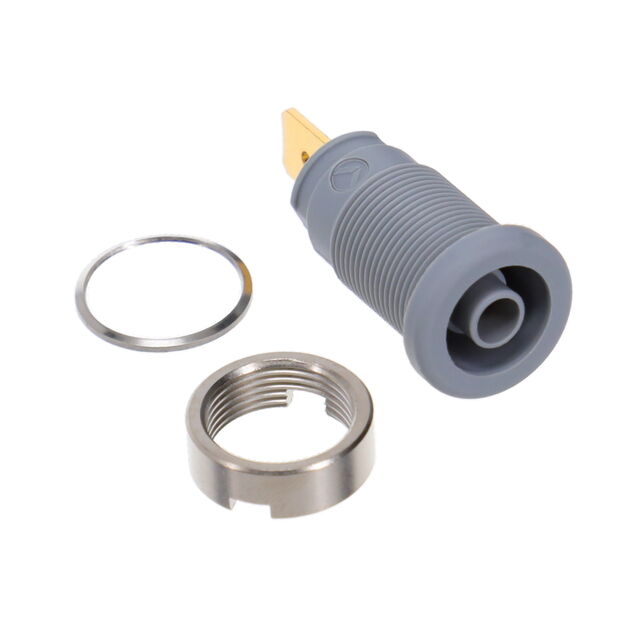

Banana Jack Connector Standard Banana Quick Connect Gray
Technical Specifications
Parameters and characteristics for this part
| Specification | 972356106 |
|---|---|
| Body Material | Nylon, PA, Polyamide |
| Color | Gray |
| Contact Finish | Gold |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Mating End Insulated |
| Mounting Type | Panel Mount, Through Hole |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Plug/Mating Plug Diameter | Standard Banana |
| Termination | Quick Connect |
| Type | Banana Jack |
