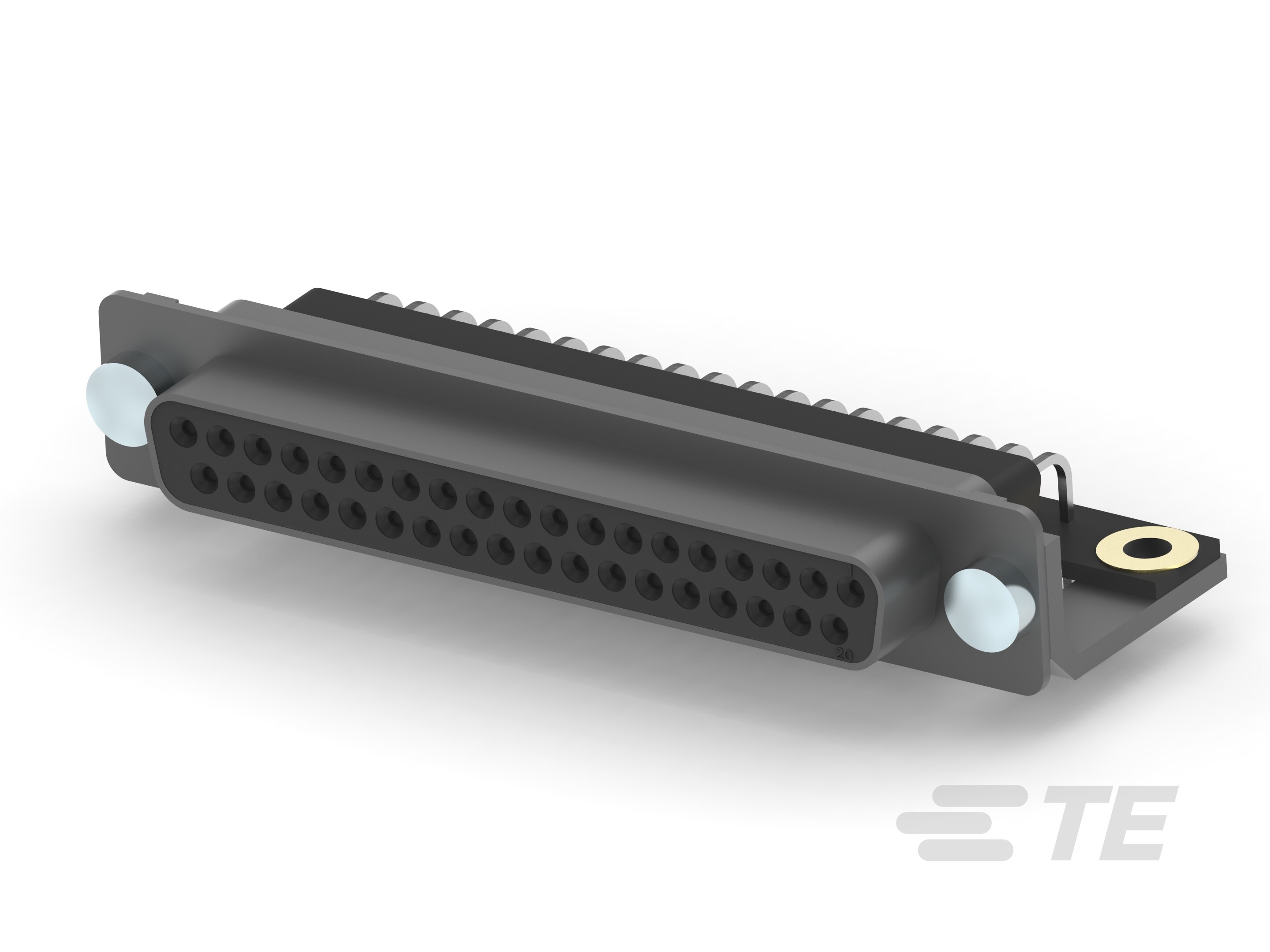

37 RCPT RA/MS STD-5745115-2

5745115-2

Active
TE Connectivity AMP Connectors

CONN D-SUB RCPT 37POS R/A SLDR

Find alt
37 RCPT RA/MS STD-5745115-2

5745115-2

Active
TE Connectivity AMP Connectors

CONN D-SUB RCPT 37POS R/A SLDR

Find alt

Description

General part information

AMPLIMITE HDP Series

37 Position D-Shaped Connector, Receptacle, Board-to-Board, Board Mount, 4 Shell Size, 2.74 mm [.108 in] Centerline, AMPLIMITE HDP

Technical Specifications

Parameters and characteristics for this part

Specification5745115-2
Backset Spacing0.545 in
ColorBlack
Connector LayoutDC, C
Connector StyleD-Sub
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact MaterialPhosphor Bronze
Contact TypeSignal
Current Rating6 A
Dielectric MaterialGlass Filled, Polyamide (PA), Nylon
FeaturesMounting Brackets
FinishTin Plated
Flange FeatureStandard Screws (4-40), Mating Side
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle
Number of Positions37 pos
Number of Rows2
Operating Temperature (Max)105 °C
Operating Temperature (Min)-55 °C
Shell MaterialSteel
Shell Size4
TerminationSolder
Voltage Rating125 V
