TCSXCNDFNX10V
ActiveSCHNEIDER ELECTRIC
CIRC CBL 4POS PLUG TO WIRE 32.8'
TCSXCNDFNX10V
ActiveSCHNEIDER ELECTRIC
CIRC CBL 4POS PLUG TO WIRE 32.8'
Description
General part information
TCSXCNDFNX10V

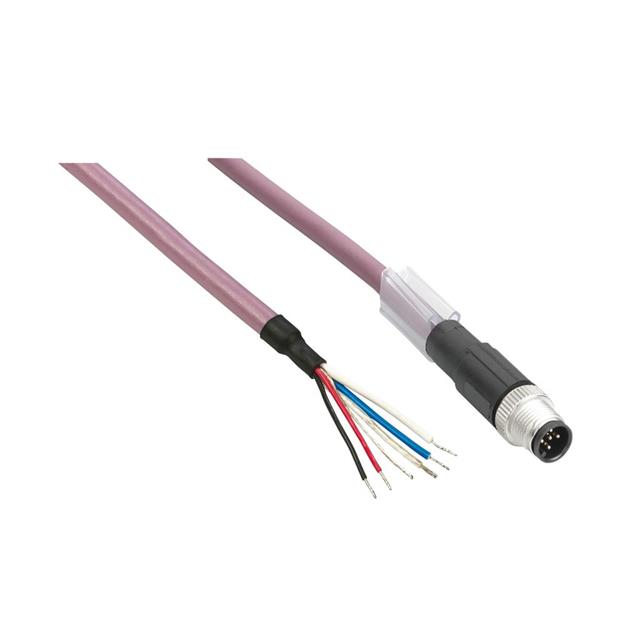

Circular Cable Assembly Unshielded 32.8' (10.00m)
Technical Specifications
Parameters and characteristics for this part
| Specification | TCSXCNDFNX10V |
|---|---|
| 1st Connector Gender | Female Sockets |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 4 positions |
| 1st Connector Number of Positions Loaded | 4 positions |
| 1st Connector Shell Size - Insert | M8 |
| 1st Connector Type | Plug |
| 2nd Connector Number of Positions | 4 |
| 2nd Connector Number of Positions Loaded | 4 positions |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Type | Round |
| Color | Violet |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 32.8 ft |
| Shielding | Unshielded |
