030398 06
ActiveLumberg Inc

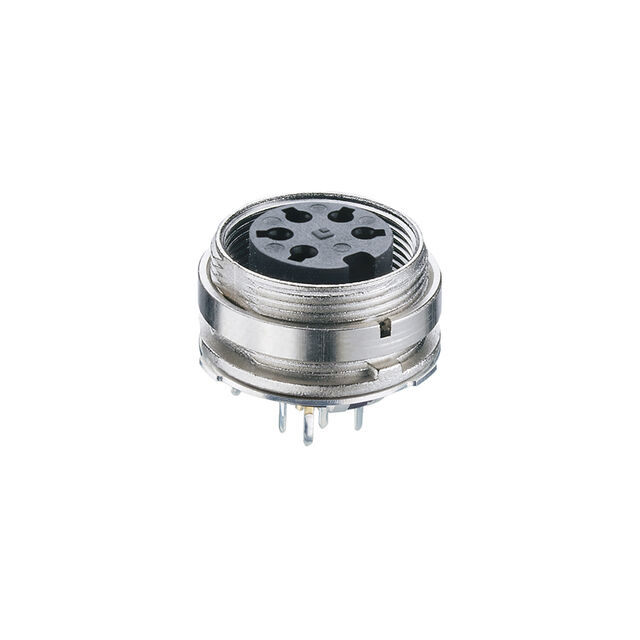

M16 CHASSIS SOCKET PCB MOUNT 6P
030398 06
ActiveLumberg Inc
M16 CHASSIS SOCKET PCB MOUNT 6P
Description
General part information
030398 06
6 Position Circular Connector Plug, Female Sockets Circuit Board, Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 030398 06 |
|---|---|
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver, Gold |
| Current Rating | 5 A |
| Fastening Type | Threaded |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 |
| Mounting Type | Chassis Mount |
| Number of Positions | 6 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M16 |
| Termination | Solder, Circuit Board |
| Voltage Rating | 300 VAC/DC |
