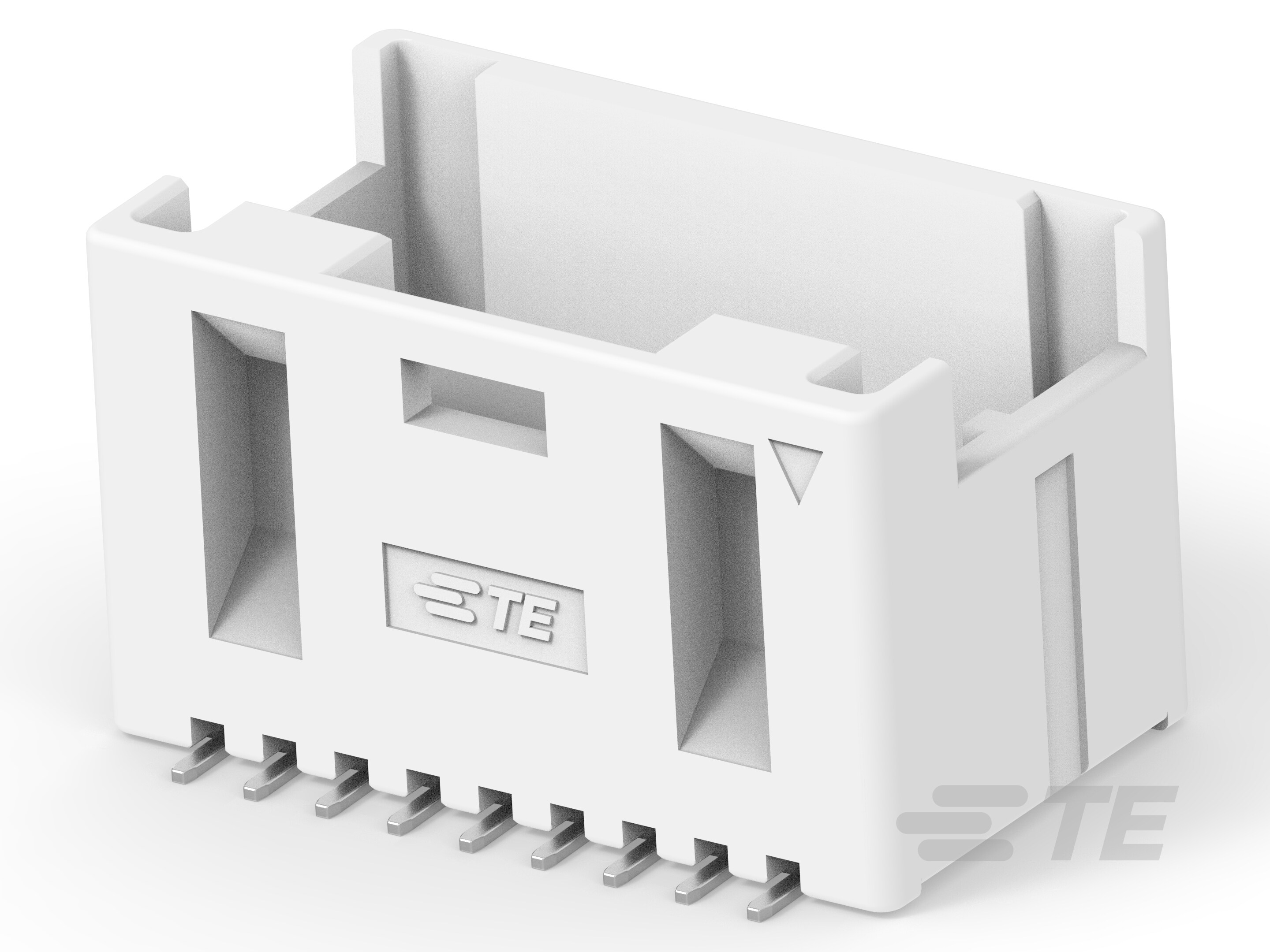

SGI 1.5 HEADER ASSY, 18P, KEY A, NATURAL
2427710-9
ActiveTE Connectivity AMP Connectors
SGI 1.5 HEADER ASSY, 18P, KEY A, NATURAL
Description
General part information
2427710-9
PCB Mount Header, Vertical, Wire-to-Board, 18 Position, 1.5 mm [.059 in] Centerline, Fully Shrouded, Tin (Sn), Surface Mount, Signal, Natural
Technical Specifications
Parameters and characteristics for this part
| Specification | 2427710-9 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 39.4 µin |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 2 A |
| Fastening Type | Push-Pull |
| Insulation Color | Natural |
| Insulation Height | 0.382 in |
| Insulation Material | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 18 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch - Mating | 0.059 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 100 VAC |
| Voltage Rating (Type) | AC, DC |
