CCSC316-2.5
ActivePasternack
CA SMC M/SMC M RG316/U 2.5'
CCSC316-2.5
ActivePasternack
CA SMC M/SMC M RG316/U 2.5'
Description
General part information
CCSC316-2.5

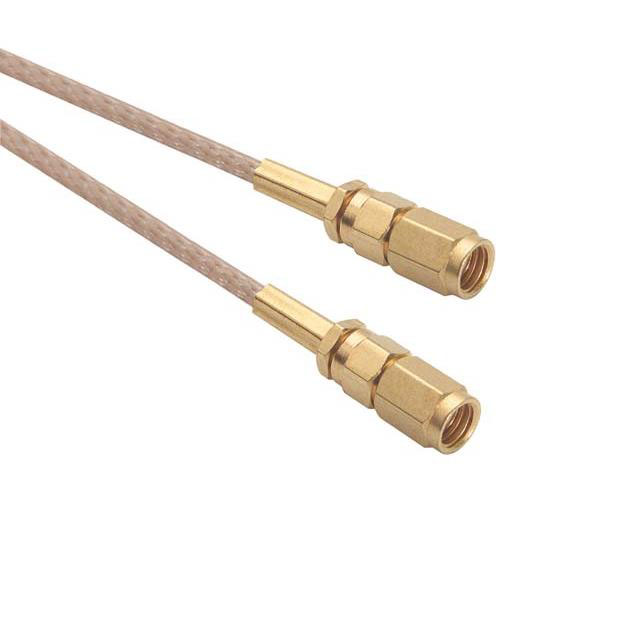

Cable Assembly Coaxial SMC to SMC RG-316 30.00" (762.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | CCSC316-2.5 |
|---|---|
| 1st Connector | SMC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 316 |
| Color | Tan |
| Length | 30 in |
| Operating Temperature | 165 °C |
| Overall Impedance | 50 Ohms |
| Style | SMC |
