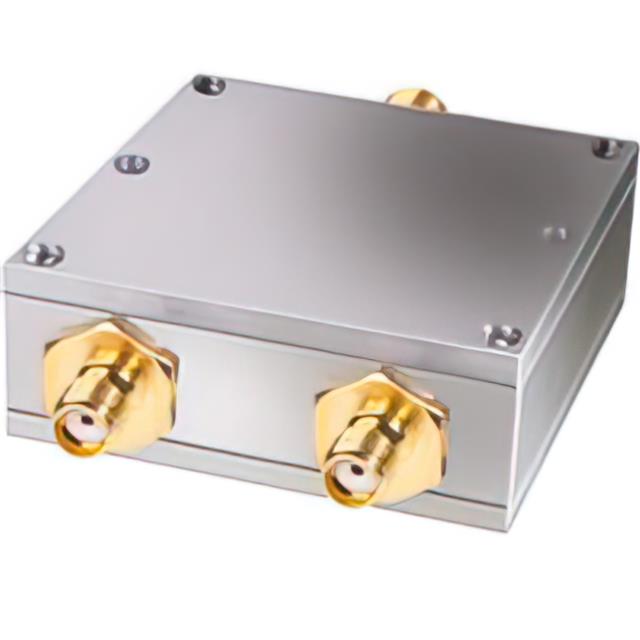

ZAPD-2-272-S+
ActiveMini-Circuits
POWER DIVIDER, 2 WAY-0 , 0.005 TO 2.7 GHZ, 50 OHMS, COAXIAL
ZAPD-2-272-S+
ActiveMini-Circuits
POWER DIVIDER, 2 WAY-0 , 0.005 TO 2.7 GHZ, 50 OHMS, COAXIAL
Description
General part information
ZAPD-2-272-S+
RF Power Divider 800 MHz ~ 2.7 GHz Isolation (Min) 18dB, 3° Imbalance (Max) Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | ZAPD-2-272-S+ |
|---|---|
| Frequency (Max) | 2.7 GHz |
| Frequency (Min) | 800 MHz |
| Imbalance (Max) | 3 ° |
| Insertion Loss | 0.3 dB |
| Isolation (Min) | 18 dB |
| Package / Case | Module, SMA Connectors |
| Size / Dimension Height | 0.75 in |
| Size / Dimension Length | 2 in |
| Size / Dimension Width | 2 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
