28R1450-100
ActiveLaird Technologies EMI
FERRITE CORE 130 OHM SOLID
28R1450-100
ActiveLaird Technologies EMI
FERRITE CORE 130 OHM SOLID
Description
General part information
28R1450-100

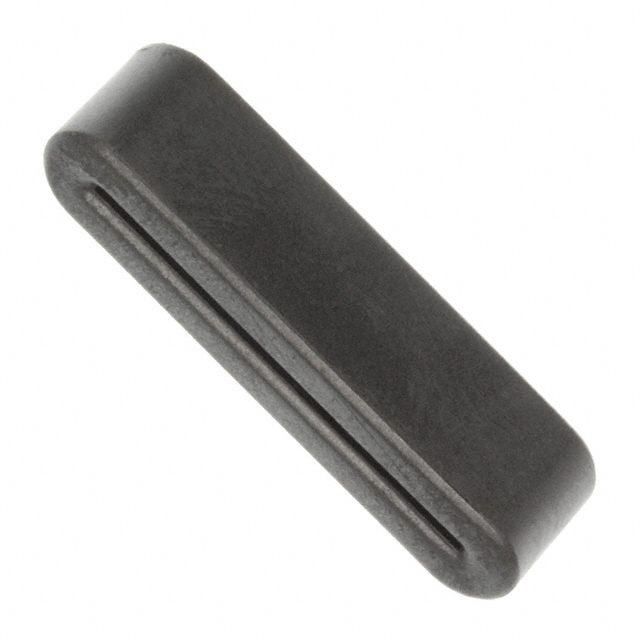

Solid Free Hanging Ferrite Core 130Ohm @ 100MHz ID 1.165" W x 0.030" H (29.58mm x 0.75mm) OD 1.450" W x 0.305" H (36.83mm x 7.75mm) Length 0.394" (10.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 28R1450-100 |
|---|---|
| Design | Solid |
| Impedance | 130 Ohm |
| Inner Dimension Height | 0.03 in |
| Inner Dimension Width | 1.165 in |
| Length | 0.394 in |
| Material | 28 |
| Material Temperature Rating | 28 °C |
| Mounting Type | Free Hanging |
| Outer Dimension Height | 0.305 in |
| Outer Dimension Width | 1.45 in |
| Type | Flat |
