V7-5F17D8

Active

Honeywell Sensing and Productivity Solutions

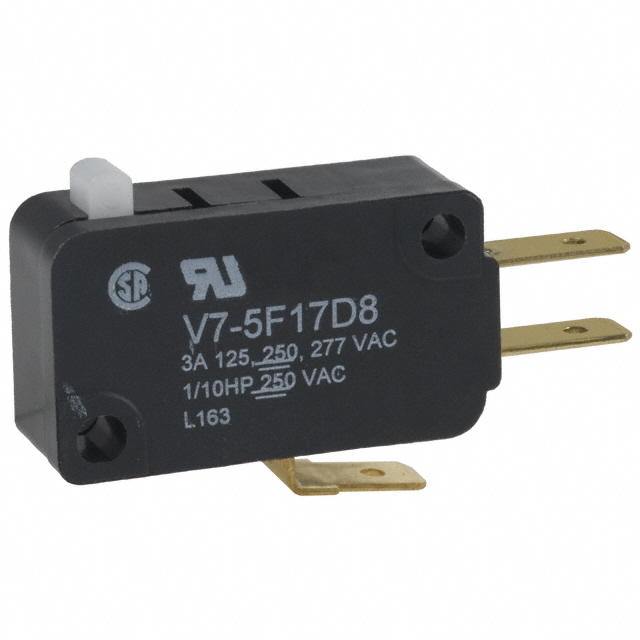

SWITCH SNAP ACTION SPDT 3A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 3A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	V7-5F17D8	V7-5 Series

	-	-
Actuator Type	Round (Pin Plunger)	Round (Pin Plunger), Lever, Straight
Circuit	SPDT	SPDT
Current Rating (Amps)	3 A	3 A
Differential Travel	0.25 mm	0.25 - 2.54 mm
Differential Travel	0.01 in	0.01 - 0.1 in
Electrical Life	100000 Cycles	100000 Cycles
Mechanical Life	10000000 Cycles	10000000 Cycles
Mounting Type	Chassis Mount	Chassis Mount
Operating Force	15 gf	2 - 15 gf
Operating Position	0.579 in	0.579 - 0.6 in
Operating Position	14.7 mm	14.7 - 15.2 mm
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	1.27 mm	1.27 - 7.6 mm
Overtravel	0.05 in	0.05 - 0.3 in
Pretravel	0.047 in	0.047 - 0.47 in
Pretravel	1.2 mm	1.2 - 11.9 mm
Switch Function	On-Mom	On-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V	125 V

SWITCH SNAP ACTION SPDT 3A 125V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Voltage Rating - AC	Mounting Type	Operating Force	Actuator Type	Overtravel	Overtravel	Differential Travel	Differential Travel	Switch Function	Electrical Life	Circuit	Termination Style	Operating Position	Operating Position	Current Rating (Amps)	Pretravel	Pretravel
Honeywell Sensing and Productivity Solutions V7-5F17D8	85 °C	-40 °C	10000000 Cycles	125 V	Chassis Mount	15 gf	Round (Pin Plunger)	1.27 mm	0.05 in	0.25 mm	0.01 in	On-Mom	100000 Cycles	SPDT	Quick Connect - 0.187" (4.7mm)	0.579 in	14.7 mm	3 A	0.047 in	1.2 mm
Honeywell Sensing and Productivity Solutions V7-5F23D8-636-1
Honeywell Sensing and Productivity Solutions V7-5F17D8-336	85 °C	-40 °C	10000000 Cycles	125 V	Chassis Mount	2 gf	Lever, Straight	7.6 mm	0.3 in	2.54 mm	0.1 in	On-Mom	100000 Cycles	SPDT	Quick Connect - 0.187" (4.7mm)	0.6 in	15.2 mm	3 A	0.47 "	11.9 mm
