PRD-11DH0-48

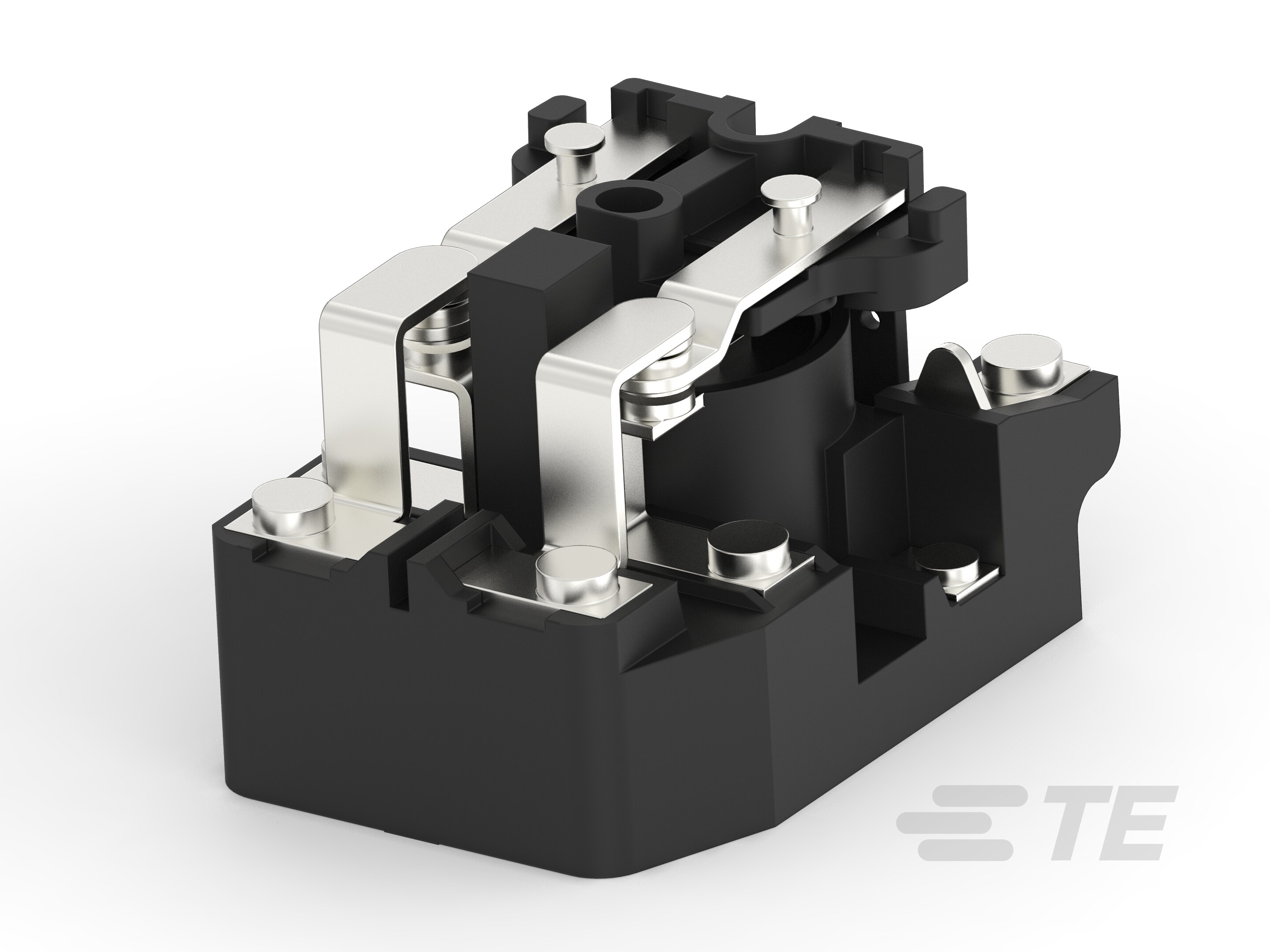

General Purpose Power Relay, DC, Monostable, 2 Form C DPDT-CO, 20 A Contact Rating, 48 VDC Coil Voltage, 600 VAC Contact Voltage
Technical Specifications
Parameters and characteristics for this part
| Specification | PRD-11DH0-48 |
|---|---|
| Approval Agency | UL, CSA |
| Coil Current | 41.7 mA |
| Coil Insulation | Class B |
| Coil Type | Non Latching |
| Coil Voltage | 48 V |
| Contact Form | Form, 2 Form C, C, 2, DPDT |
| Contact Material | Silver (Ag) |
| Contact Rating (Current) | 20 A |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 36 VDC |
| Must Release Voltage | 4.8 VAC |
| Operate Time | 40 ms |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -55 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Switching Voltage AC (Nominal) | 600 VAC |
| Switching Voltage DC (Nominal) | 125 VDC |
| Termination Style | Screw Terminal |
