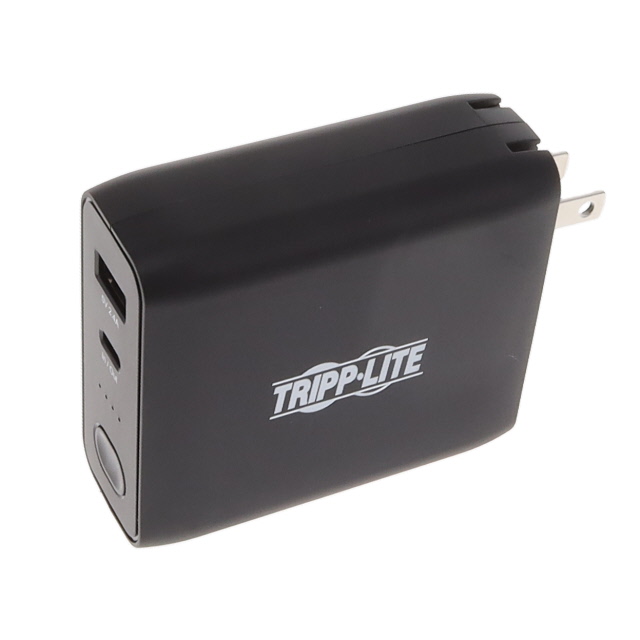

UPBW-05K0-1A1C
ActiveEaton Tripp Lite
BATT CHARGER WALL MT 5V 2.4A 3A
UPBW-05K0-1A1C
ActiveEaton Tripp Lite
BATT CHARGER WALL MT 5V 2.4A 3A
Description
General part information
UPBW-05K0-1A1C
USB Wall Mount Battery Charger 5V 2.4A, 3A
Technical Specifications
Parameters and characteristics for this part
| Specification | UPBW-05K0-1A1C |
|---|---|
| Approval Agency | FCC, UL |
| Battery Chemistry | Mobile Devices |
| Charge Current - Max | 2.4A, 3A |
| Charge Current - Max | 3 A, 2.4 A |
| Features | USB Pluggable |
| Mounting Type | Wall Mount |
| Number of Cells | 2 |
| Operating Temperature (Max) | 25 °C |
| Operating Temperature (Min) | 0 °C |
| Size / Dimension Height | 1.18 in |
| Size / Dimension Length | 3.07 in |
| Size / Dimension Width | 2.72 in |
| Termination Style | USB A Receptacle, USB C Receptacle |
| Type | USB Wall Mount |
| Voltage - Input | 120 VAC, 230 V |
| Voltage - Nominal | 5 V |
