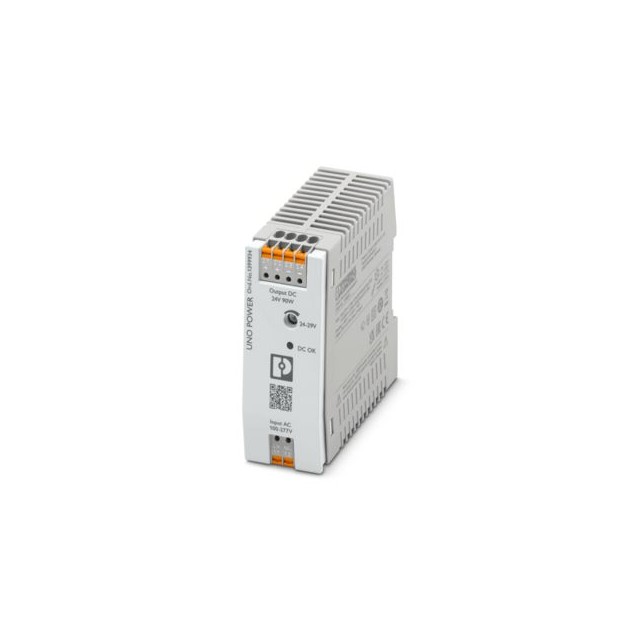

1399934
ActivePhoenix Contact
POWER SUPPLY
1399934
ActivePhoenix Contact
POWER SUPPLY
Description
General part information
1399934
POWER SUPPLY
Technical Specifications
Parameters and characteristics for this part
| Specification | 1399934 |
|---|---|
| AC Voltage - Input (Max) | 277 VAC |
| AC Voltage - Input (Min) | 100 VAC |
| Applications | ITE (Commercial) |
| Approval Agency | UL |
| Current - Output (Max) | 3.75 A |
| DC Voltage - Input (Max) | 250 V |
| DC Voltage - Input (Min) | 110 V |
| Efficiency | 95 % |
| Features | IP20 |
| Input Type | AC |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Power (Watts) | 90 W |
| Size / Dimension Height | 3.54 in |
| Size / Dimension Length | 3.54 in |
| Size / Dimension Width | 1.38 in |
| Standard Number | 61010-1 |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
