2385006-4
ActiveTE Connectivity AMP Connectors

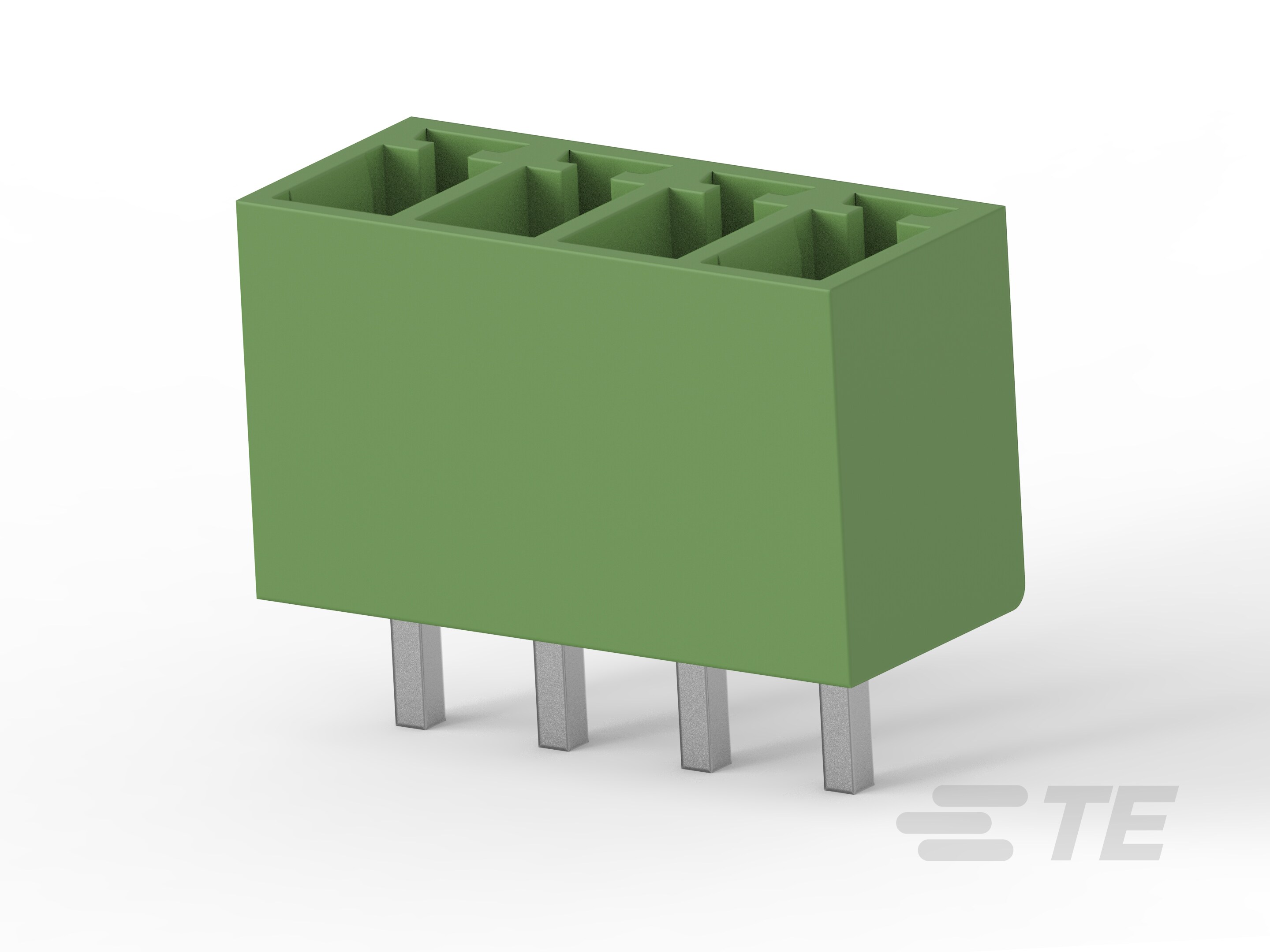

4P TB HDR 180 DEG,PITCH 3.81 &TL 3.4MM
2385006-4
ActiveTE Connectivity AMP Connectors
4P TB HDR 180 DEG,PITCH 3.81 &TL 3.4MM
Description
General part information
2385006-4
4 Position PCB Terminal Block, Header, Wire-to-Board, 3.81 mm [.15 in] Centerline, 1 Row, 300 VAC, Printed Circuit Board, Vertical
Technical Specifications
Parameters and characteristics for this part
| Specification | 2385006-4 |
|---|---|
| Color | Green |
| Contact Mating Finish | Tin |
| Current - UL | 10 A |
| Header Orientation | Vertical |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.15 in |
| Positions Per Level | 4 |
| Termination Style | Solder |
| Type | Shrouded (4 Side), Male Pins, Header |
| Voltage - UL | 300 V |
