9430 060U1000

Active

Belden Inc.

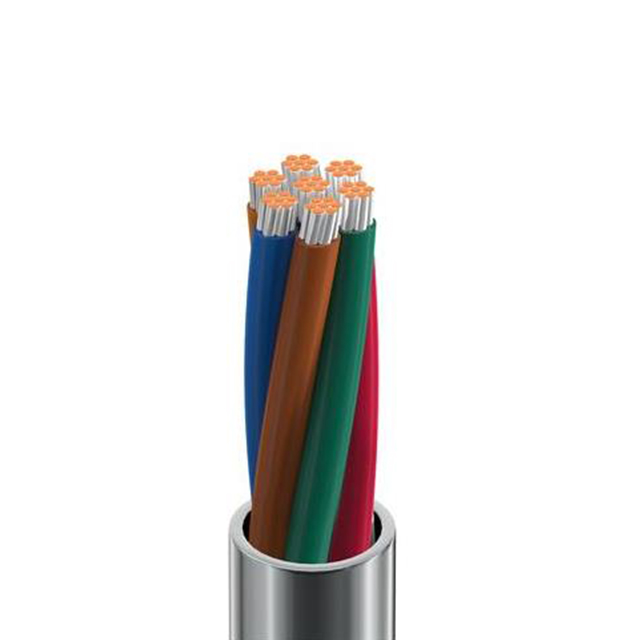

CABLE 7COND 22AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 7COND 22AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	9430 060U1000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	5.44 mm
Jacket (Insulation) Diameter [diameter]	0.214 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	7
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2576
Usage	Audio, Instrumentation, Control
Wire Gauge	22 AWG

Part	Usage	Ratings	Cable Type	Conductor Insulation	Jacket Color	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Jacket (Insulation) Material	Length [x]	Length [x]
Belden Inc. 9430 060U1000	Audio Control Instrumentation	UL Style 2576	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Chrome	7	7	30 AWG	22 AWG	-20 C	80 C	1000 ft	304.8 m	5.44 mm	0.214 in	Copper Tinned	Poly-Vinyl Chloride (PVC)
Belden Inc. 9430 060U500	Audio Control Instrumentation	UL Style 2576	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Chrome	7	7	30 AWG	22 AWG	-20 C	80 C			5.44 mm	0.214 in	Copper Tinned	Poly-Vinyl Chloride (PVC)	500 '	152.4 m
Belden Inc. 9430 0601000	Audio Control Instrumentation	UL Style 2576	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Chrome	7	7	30 AWG	22 AWG	-20 C	80 C	1000 ft	304.8 m	5.44 mm	0.214 in	Copper Tinned	Poly-Vinyl Chloride (PVC)
Belden Inc. 9430 060500	Audio Control Instrumentation	UL Style 2576	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Chrome	7	7	30 AWG	22 AWG	-20 C	80 C			5.44 mm	0.214 in	Copper Tinned	Poly-Vinyl Chloride (PVC)	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.00

General part information

7 Conductor Multi-Conductor Cable Chrome 22 AWG 1000.0' (304.8m)
