FMCA1502-24
ActiveFairview Microwave

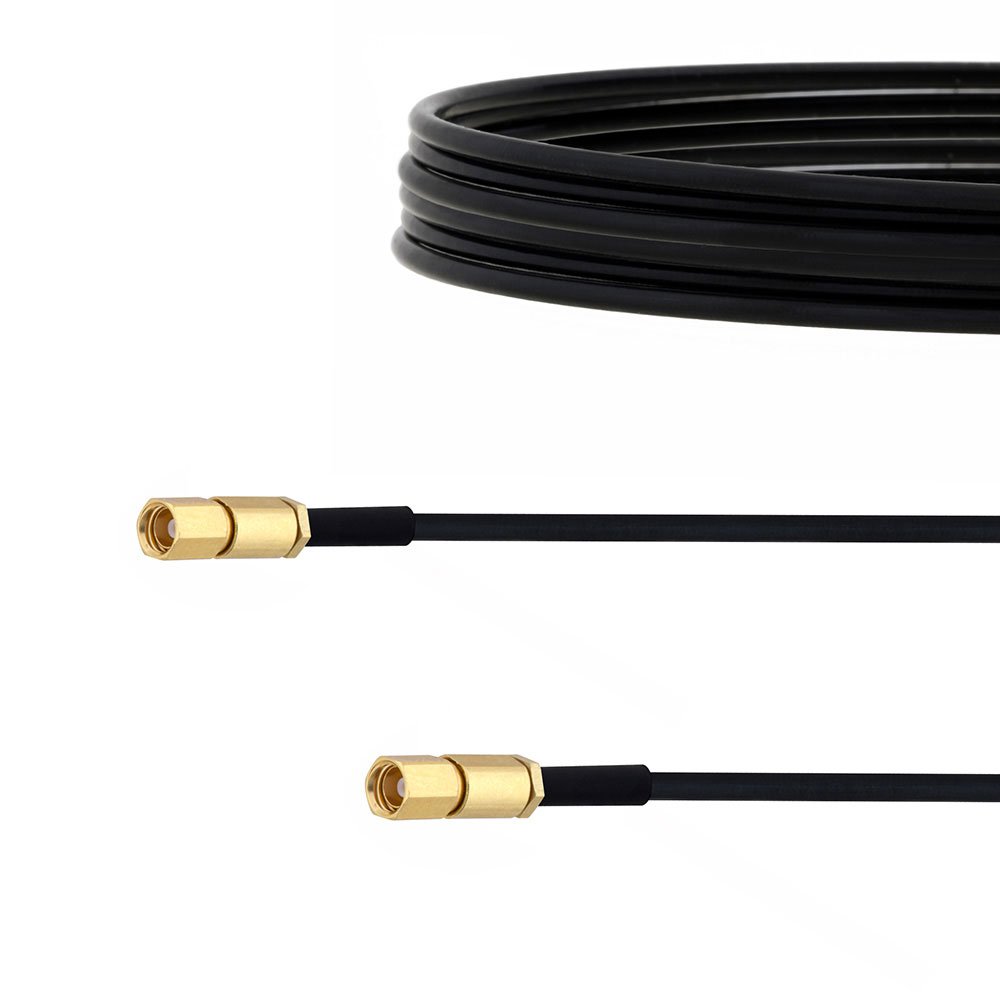

CBL ASSY SSMCPLUG-SSMCPLUG 24
FMCA1502-24
ActiveFairview Microwave
CBL ASSY SSMCPLUG-SSMCPLUG 24
Description
General part information
FMCA1502-24
Cable Assembly Coaxial
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA1502-24 |
|---|---|
| 1st Connector | SSMC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SSMC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Diameter | 0.086 " |
| Cable Impedance | 50 Ohms |
| Cable Type | Rigid Cable, Semi, Semi-Rigid Cable |
| Cable Type Size | 0.086, 0.086 " |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 12.4 GHz |
| Length | 24 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SSMC |
