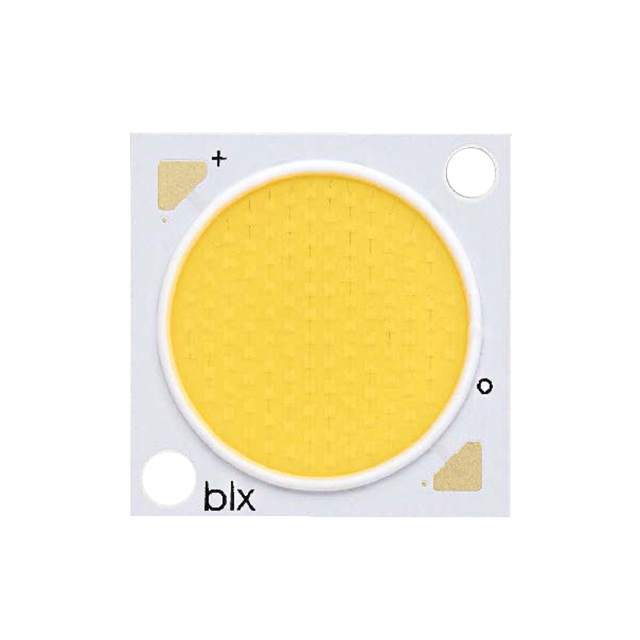

BXRE-25E4000-B-74

Active

BRIDGELUX

LED COB V18 WARM WHT SQU 2500K

Search across all available documentation for this part.

Active

BRIDGELUX

LED COB V18 WARM WHT SQU 2500K

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXRE-25E4000-B-74	BXRE-25 Series

CCT (K)	2500 K	2500 K
CCT (K)	4-Step MacAdam Ellipse	4-Step MacAdam Ellipse
Color	White, Warm	White, Warm
Configuration	Square	Square
CRI (Color Rendering Index)	80	80
Current - Max [Max]	1.8 A	1.26 - 2.8 A
Current - Test	900 mA	630 - 900 mA
Height [z]	1.7 mm	1.7 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	19.2 mm	14 - 22.6 mm
Lumens/Watt @ Current - Test	127 lm/W	127 - 139 lm/W
Luminous Flux @ Current/Temperature	3900 lm	3037 - 6140 lm
Size / Dimension [x]	24 mm	19 - 28 mm
Size / Dimension [y]	24 mm	19 - 28 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	34 V	33.4 - 34.8 V

LED COB V13 WARM WHT SQU 2500K

Part	Type	Luminous Flux @ Current/Temperature	Configuration	Height [z]	Light Emitting Surface (LES) [diameter]	Voltage - Forward (Vf) (Typ)	Viewing Angle	Current - Test	Lumens/Watt @ Current - Test	Current - Max [Max]	Lens Type	CRI (Color Rendering Index)	CCT (K)	CCT (K)	Color	Size / Dimension [y]	Size / Dimension [x]	Temperature - Test
BRIDGELUX BXRE-25E2000-C-74	Chip On Board (COB)	3037 lm	Square	1.7 mm	14 mm	34.8 V	120 °	630 mA	139 lm/W	1.26 A	Flat	80	2500 K	4-Step MacAdam Ellipse	Warm, White	19 mm	19 mm
BRIDGELUX BXRE-25E4000-B-74	Chip On Board (COB)	3900 lm	Square	1.7 mm	19.2 mm	34 V	120 °	900 mA	127 lm/W	1.8 A	Flat	80	2500 K	4-Step MacAdam Ellipse	Warm, White	24 mm	24 mm	85 °C
BRIDGELUX BXRE-25E6500-D-74	Chip On Board (COB)	6140 lm	Square	1.7 mm	22.6 mm	33.4 V	120 °		131 lm/W	2.8 A	Flat	80	2500 K	4-Step MacAdam Ellipse	Warm, White	28 mm	28 mm	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	600	$ 7.23

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) Gen 7 V18 Array White, Warm Square
