NE68018-T1-A
ObsoleteRenesas Electronics Corporation
RF TRANS NPN 10V 10GHZ SOT343
NE68018-T1-A
ObsoleteRenesas Electronics Corporation
RF TRANS NPN 10V 10GHZ SOT343
Description
General part information
NE68018-T1-A
RF Transistor NPN 10V 35mA 10GHz 150mW Surface Mount SOT-343
Technical Specifications
Parameters and characteristics for this part
| Specification | NE68018-T1-A |
|---|---|
| Current - Collector (Ic) (Max) | 0.035 mA |
| DC Current Gain (hFE) (Min) | 50 |
| Frequency - Transition | 10 GHz |
| Gain | 10.2 dB |
| Mounting Type | Surface Mount |
| Noise Figure (Typical) | 1.8 dB |
| Operating Temperature | 150 °C |

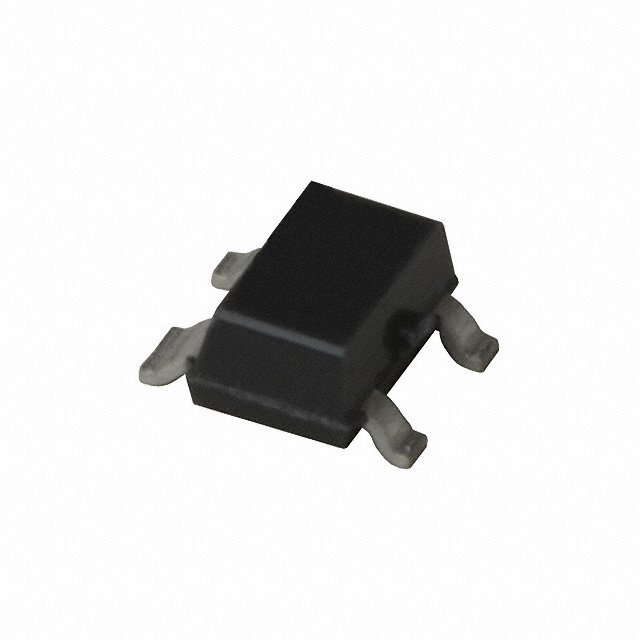

| Package / Case | SOT-343, SC-82A |
| Package Name | SOT-343 |
| Power - Max | 150 mW |
| Transistor Type | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 10 V |
