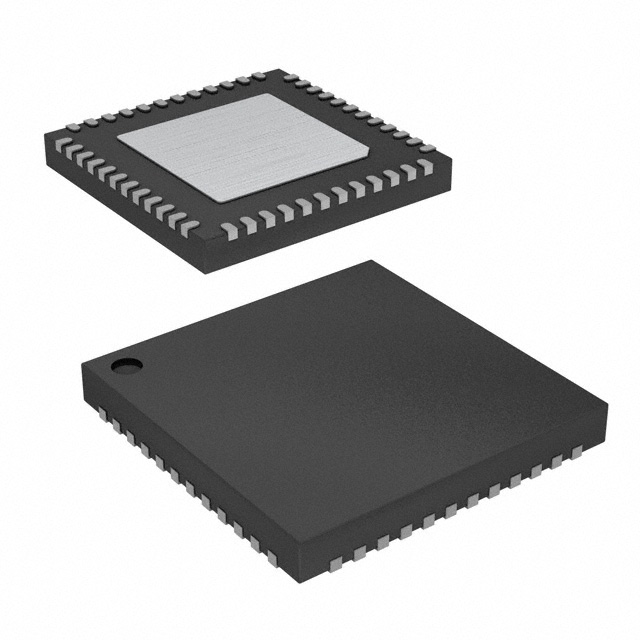

CYWUSB6953-48LTXC
IC RF TxRx + MCU General ISM > 1GHz 2.4GHz 48-VFQFN Exposed Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | CYWUSB6953-48LTXC |
|---|---|
| Current - Receiving | 61.3 mA |
| Current - Transmitting | 74.7 mA |
| Data Rate (Max) | 62.5 kbps |
| Frequency | 2.4 GHz |
| GPIO Count | 18 |
| Memory Size (Flash) | 8 kB |
| Memory Size (SRAM) | 512 B |
| Memory Type | Flash, SRAM |
| Modulation | DSSS |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Package / Case | 48-VFQFN Exposed Pad |
| Package Length | 7 mm |
| Package Name | 48-QFN |
| Package Width | 7 mm |
| Power - Output | 0 dBm |
| RF Family/Standard | General ISM > 1GHz |
| Sensitivity | -95 dBm |
| Serial Interfaces | I2C, SPI |
| Type | TxRx + MCU |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 2.7 V |
