FMCN1178
ActiveFairview Microwave
CONN JACK SOLDER TNC
FMCN1178
ActiveFairview Microwave
CONN JACK SOLDER TNC
Description
General part information
FMCN1178

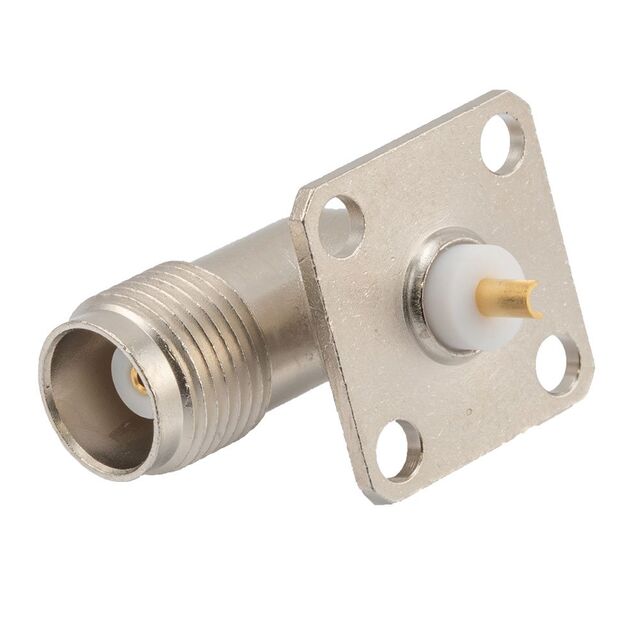

TNC Connector Jack, Female Socket Panel Mount, Right Angle Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCN1178 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | TNC |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 11 GHz |
| Housing Color | Silver |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount, Right Angle |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -55 °C |
| Shield Termination | Solder |
