63602-1
ActiveTE Connectivity AMP Connectors
RING TONGUE TERMINAL 14-18AWG STAINLESS STEEL 31.62MM REEL/STRIP AUTOMOTIVE
63602-1
ActiveTE Connectivity AMP Connectors
RING TONGUE TERMINAL 14-18AWG STAINLESS STEEL 31.62MM REEL/STRIP AUTOMOTIVE
Description
General part information
63602-1

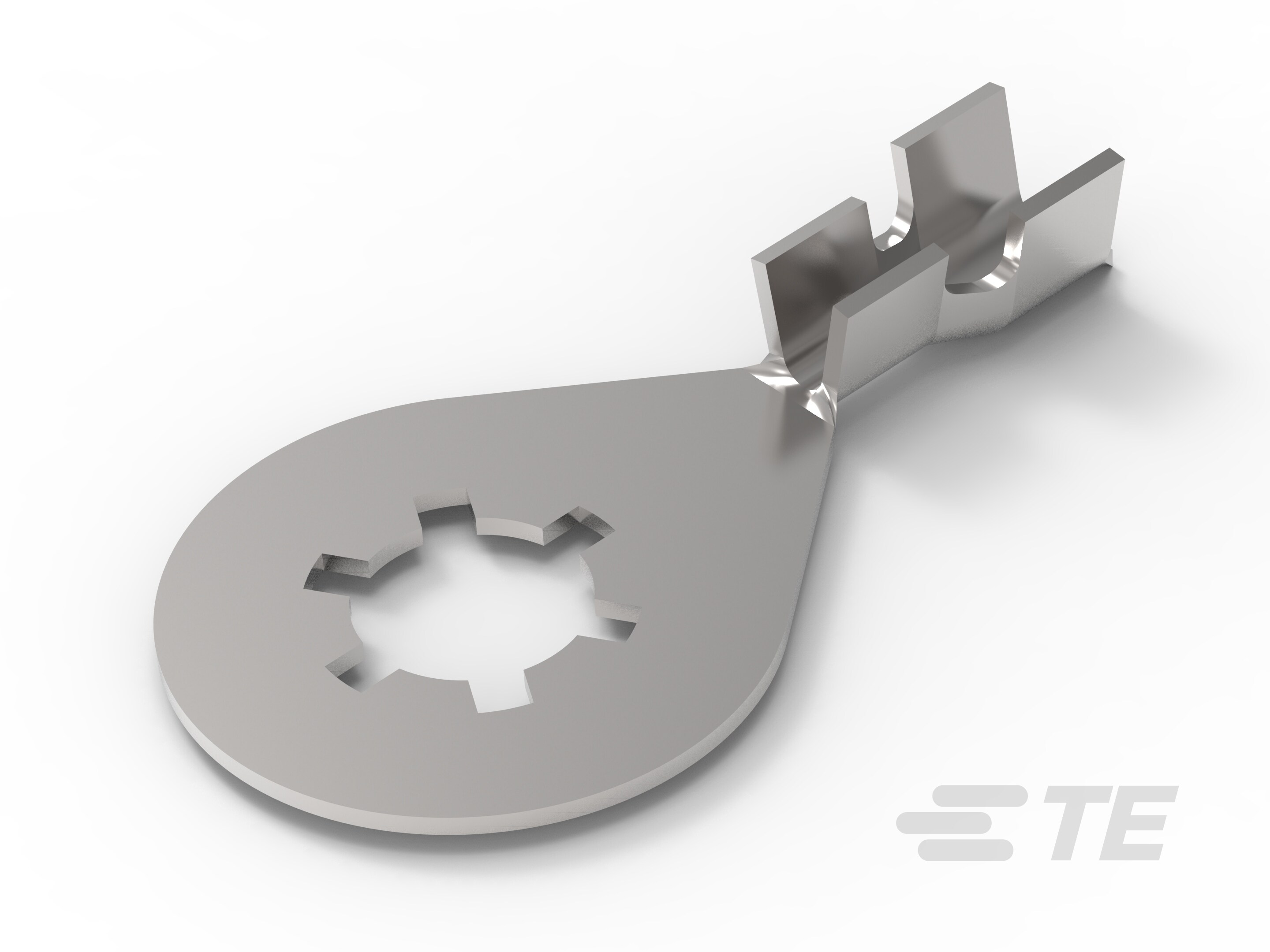

Closed Ring Tongue Terminal, 18 – 14 AWG, M6 Stud, 6.37 mm [.26 in] Stud Diameter, Open Barrel, Straight, Unplated Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 63602-1 |
|---|---|
| Contact Material | Steel |
| Features | Inner Teeth |
| Insulation | Non-Insulated |
| Length - Overall | 1.245 in |
| Mounting Type | Free Hanging (In-Line) |
| Terminal Type | Stud Retaining |
| Termination | Crimp |
| Thickness | 0.025 in |
| Width - Outer Edges | 0.687 in |
| Wire Gauge (AWG) (Max) | 18 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
