Specification	JBXFD1G04FCSDSMR

Applications	Telecommunications, Instrumentation, Industrial, Medical
Backshell Material	Brass
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	19.7 µin
Current Rating	10 A
Fastening Type	Push-Pull
Features	Boot Adapter, Backshell
Ingress Protection	IP40
Insert Material	Polyetheretherketone, PEEK
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Orientation	G
Plating	Chrome over Nickel
Primary Material	Metal
Shell Finish	Chrome, Nickel
Shell Material	Brass
Shell Size - Insert	1
Shell Size - Insert	1
Shielding	Shielded
Termination	Crimp
Voltage Rating	900 V

JBXFD1G Series

Part	Contact Finish Thickness - Mating	Voltage Rating	Orientation	Connector Type	Shielding	Operating Temperature (Max)	Operating Temperature (Min)	Primary Material	Material Flammability Rating	Plating	Backshell Material	Mounting Type	Contact Finish - Mating	Shell Material	Applications	Current Rating	Number of Positions	Termination	Features	Shell Size - Insert	Shell Size - Insert	Ingress Protection	Shell Finish	Fastening Type	Insert Material	Color
Amphenol Aerospace Operations JBXFD1G06MCSDSMR	19.7 µin	660 V	G	Male Pins Plug	Shielded	125 °C	-40 °C	Metal	UL94 V-0	Chrome over Nickel	Brass	Free Hanging (In-Line)	Gold	Brass	Industrial Instrumentation Medical Telecommunications	7 A	6	Crimp	Backshell Boot Adapter	1	1	IP40	Chrome Nickel	Push-Pull	PEEK Polyetheretherketone	Silver
Amphenol Aerospace Operations JBXFD1G03MCSDSR	19.7 µin	600 V	G	Male Pins Plug	Shielded	125 °C	-40 °C	Metal	UL94 V-0	Chrome over Nickel	Brass	Free Hanging (In-Line)	Gold	Brass	Industrial Instrumentation Medical Telecommunications	12 A	3	Crimp	Backshell	1	1	IP40	Chrome Nickel	Push-Pull	PEEK Polyetheretherketone	Silver
Amphenol Aerospace Operations JBXFD1G05MSSDSR	19.7 µin	660 V	G	Male Pins Plug	Shielded	125 °C	-40 °C	Metal	UL94 V-0	Chrome over Nickel	Brass	Free Hanging (In-Line)	Gold	Brass	Industrial Instrumentation Medical Telecommunications	9 A	5	Solder Cup	Backshell	1	1	IP40	Chrome Nickel	Push-Pull	PEEK Polyetheretherketone	Silver
Amphenol Aerospace Operations JBXFD1G08MCSDSMR	19.7 µin	600 V	G	Male Pins Plug	Shielded	125 °C	-40 °C	Metal	UL94 V-0	Chrome over Nickel	Brass	Free Hanging (In-Line)	Gold	Brass	Industrial Instrumentation Medical Telecommunications	5 A	8	Crimp	Backshell Boot Adapter	1	1	IP40	Chrome Nickel	Push-Pull	PEEK Polyetheretherketone	Silver

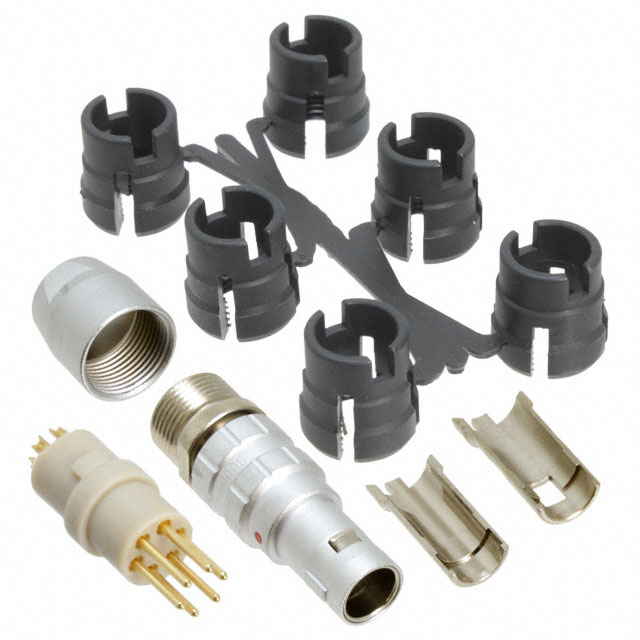

Amphenol Aerospace Operations JBXFD1G06MSSDSR	19.7 µin	660 V	G	Male Pins Plug	Shielded	125 °C	-40 °C	Metal	UL94 V-0	Chrome over Nickel	Brass	Free Hanging (In-Line)	Gold	Brass	Industrial Instrumentation Medical Telecommunications	7 A	6	Solder Cup	Backshell	1	1	IP40	Chrome Nickel	Push-Pull	PEEK Polyetheretherketone	Silver
Amphenol Aerospace Operations JBXFD1G06FCSDSR	19.7 µin	660 V	G	Female Sockets Plug	Shielded	125 °C	-40 °C	Metal	UL94 V-0	Chrome over Nickel	Brass	Free Hanging (In-Line)	Gold	Brass	Industrial Instrumentation Medical Telecommunications	7 A	6	Crimp	Backshell	1	1	IP40	Chrome Nickel	Push-Pull	PEEK Polyetheretherketone	Silver

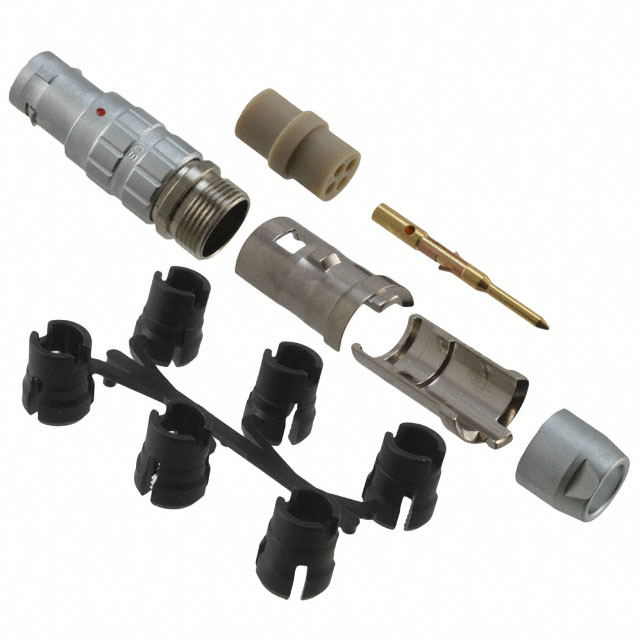

Amphenol Aerospace Operations JBXFD1G04MCSDSR	19.7 µin	900 V	G	Male Pins Plug	Shielded	125 °C	-40 °C	Metal	UL94 V-0	Chrome over Nickel	Brass	Free Hanging (In-Line)	Gold	Brass	Industrial Instrumentation Medical Telecommunications	10 A	4	Crimp	Backshell	1	1	IP40	Chrome Nickel	Push-Pull	PEEK Polyetheretherketone	Silver
Amphenol Aerospace Operations JBXFD1G06MSSDSMR	19.7 µin	660 V	G	Male Pins Plug	Shielded	125 °C	-40 °C	Metal	UL94 V-0	Chrome over Nickel	Brass	Free Hanging (In-Line)	Gold	Brass	Industrial Instrumentation Medical Telecommunications	7 A	6	Solder Cup	Backshell Boot Adapter	1	1	IP40	Chrome Nickel	Push-Pull	PEEK Polyetheretherketone	Silver
Amphenol Aerospace Operations JBXFD1G06MSNDSR	19.7 µin	660 V	G	Male Pins Plug	Shielded	125 °C	-40 °C	Metal	UL94 V-0	Black Chrome over Nickel	Brass	Free Hanging (In-Line)	Gold	Brass	Industrial Instrumentation Medical Telecommunications	7 A	6	Solder Cup	Backshell	1	1	IP40	Black Chrome Nickel	Push-Pull	PEEK Polyetheretherketone	Black
Amphenol Aerospace Operations JBXFD1G03MCSDSMR	19.7 µin	600 V	G	Male Pins Plug	Shielded	125 °C	-40 °C	Metal	UL94 V-0	Chrome over Nickel	Brass	Free Hanging (In-Line)	Gold	Brass	Industrial Instrumentation Medical Telecommunications	12 A	3	Crimp	Backshell Boot Adapter	1	1	IP40	Chrome Nickel	Push-Pull	PEEK Polyetheretherketone	Silver
