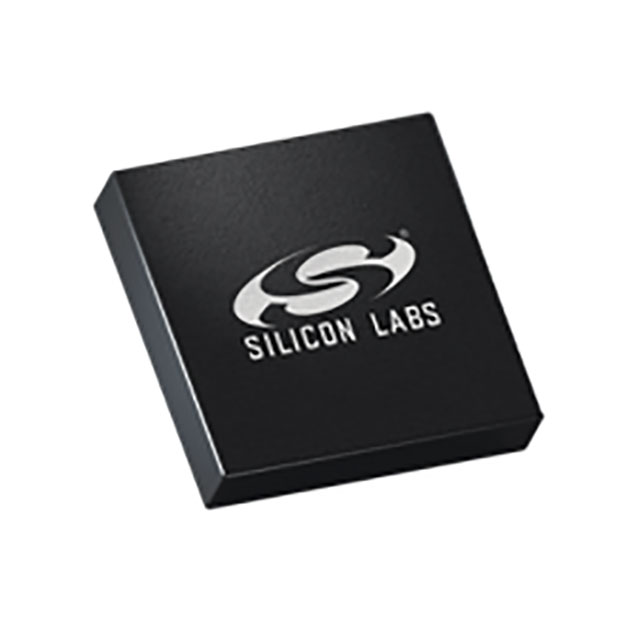

BGM240SA22VNA2
ActiveSILICON LABS
BLUETOOTH V5.3 (BLE) SMART SOC CLASS I/CLASS II/CLASS III IOT 2MBPS 3V 52-PIN TRAY
BGM240SA22VNA2
ActiveSILICON LABS
BLUETOOTH V5.3 (BLE) SMART SOC CLASS I/CLASS II/CLASS III IOT 2MBPS 3V 52-PIN TRAY
Description
General part information
BGM240SA22VNA2
Bluetooth Bluetooth v5.3 Transceiver Module 2.4GHz Antenna Not Included, Integrated, Chip Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | BGM240SA22VNA2 |
|---|---|
| Antenna Type | Antenna Not Included, Integrated, Chip |
| Current - Receiving (Max) | 5.8 mA |
| Current - Receiving (Min) | 5 mA |
| Current - Transmitting | 23.4 mA |
| Data Rate | 2 Mbps |
| Frequency | 2.4 GHz |
| Memory Size | 256 kB |
| Memory Size (Flash) | 1.5 MB |
| Memory Type | RAM, Flash |
| Modulation | GFSK |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Exposed Pad, 48-LFQFN Module |
| Power - Output | 10 dBm |
| Protocol | Bluetooth v5.3 |
| RF Family/Standard | Bluetooth |
| Sensitivity | -105.1 dBm |
| Serial Interfaces | I2S, JTAG, IrDA, UART, GPIO, I2C, PWM, USART, SPI |
| Utilized IC / Part | EFR32BG24 |
| Voltage - Supply (Maximum) | 3.8 V |
| Voltage - Supply (Minimum) | 1.8 V |
