CM03X7R681K16AH
ActiveKYOCERA AVX
CAP CER 680PF 4V X7R 0201
CM03X7R681K16AH
ActiveKYOCERA AVX
CAP CER 680PF 4V X7R 0201
Description
General part information
CM03X7R681K16AH

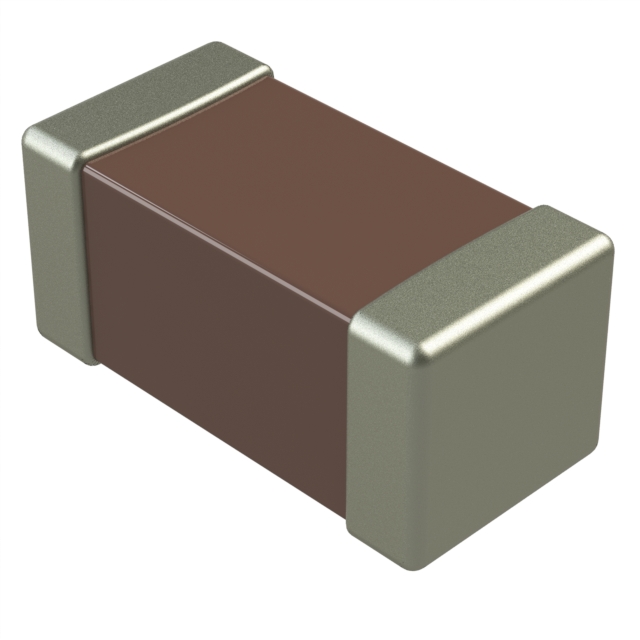

680 pF ±10% 4V Ceramic Capacitor X7R 0201 (0603 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | CM03X7R681K16AH |
|---|---|
| Applications | General Purpose |
| Capacitance | 680 pF |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0201 (0603 Metric) |
| Size / Dimension Length | 0.024 in |
| Size / Dimension Width | 0.012 in |
| Temperature Coefficient | X7R |
| Thickness (Max) | 0.009 in |
| Tolerance | 10 % |
| Voltage - Rated | 4 V |
