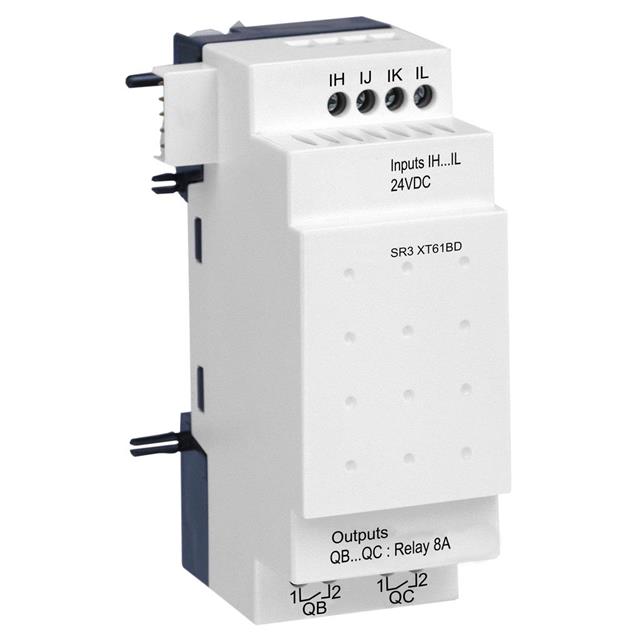

SR3XT61BD
ActiveSCHNEIDER ELECTRIC
DISCRETE I/O EXTENSION MODULE, 4 RESISTIVE INPUTS, 2 RELAY OUTPUTS, 24 VDC, ZELIO LOGIC SERIES
SR3XT61BD
ActiveSCHNEIDER ELECTRIC
DISCRETE I/O EXTENSION MODULE, 4 RESISTIVE INPUTS, 2 RELAY OUTPUTS, 24 VDC, ZELIO LOGIC SERIES
Description
General part information
SR3XT61BD
Input, Output (I/O) Module DIN Rail 24VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | SR3XT61BD |
|---|---|
| Approval Agency | UL, IEC, GOST, CSA, C-Tick |
| For Use With/Related Products | Zelio Logic Series |
| Ingress Protection | IP20 |
| Input Types | Digital |
| Mounting Type | DIN Rail |
| Number of Inputs | 4 |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -20 °C |
| Output Type | Relay |
| Termination Style | Screw Terminal |
| Type | Output (I/O) Module, Input |
| Voltage - Supply | 24 VDC |
