VG95328T8-3ASNJ

Active

Amphenol Air LB

VG95328 3C 3#20 SKT JAM NUT RECP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VG95328T8-3ASNJ

Active

Amphenol Air LB

VG95328 3C 3#20 SKT JAM NUT RECP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VG95328T8-3ASNJ	VG953 Series

Applications	Military	Military
Cable Opening	-	6.7 - 23.01 mm
Cable Opening	-	0.264 - 0.906 in
Cable Opening	-	0.72 - 1.134 in
Cable Opening	-	18.3 - 28.8 mm
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets, Receptacle, Male Pins, Plug
Contact Finish - Mating	-	Gold
Contact Material	-	Copper Alloy
Current Rating (Amps)	-	7.5 - 13 A
Fastening Type	Reverse Bayonet Lock	Reverse Bayonet Lock
Features	-	Backshell
Insert Material	-	Neoprene
Mounting Feature	-	Bulkhead - Front Side Nut
Number of Positions	-	6 - 61
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	N	N, Z, X, W, Y
Primary Material	-	Metal
Shell Finish	Zinc-Tin	Cadmium, Zinc-Tin
Shell Material	-	Aluminum Alloy
Shell Size - Insert	8-3	14-12, 14-5, 8-3, 8-3A, 12-3, 10-6
Shell Size - Insert	-	15 - 61
Shell Size - Insert	-	14 - 24
Shell Size - Insert	-	19
Shell Size - Insert	-	14
Shielding	Shielded	Shielded
Termination	Crimp	Crimp
Voltage Rating	-	600 - 1250 VAC

VG953 Series

RECEPTACLE CRIMP 12 CONTACTS

...

Part	Termination	Shell Size - Insert	Insert Material	Features	Shell Finish	Orientation	Connector Type	Fastening Type	Applications	Shielding	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Mounting Feature	Shell Material	Cable Opening [diameter]	Cable Opening [diameter]	Contact Material	Voltage Rating	Contact Finish - Mating	Number of Positions	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Cable Opening [custom]	Cable Opening [custom]	Color	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]
Amphenol Air LB VG95328T1412SN	Crimp	14-12	Neoprene	Backshell	Cadmium	N	Receptacle, Female Sockets	Reverse Bayonet Lock	Military	Shielded	Metal	-55 °C	125 °C	7.5 A, 13 A	Bulkhead - Front Side Nut	Aluminum Alloy	15.2 mm	0.598 in	Copper Alloy	600 VAC, 850 V	Gold	12
Amphenol Air LB VG95328T1832PZ	Crimp		Neoprene	Backshell	Cadmium	Z	Male Pins, Receptacle	Reverse Bayonet Lock	Military	Shielded	Metal	-55 °C	125 °C	7.5 A	Bulkhead - Front Side Nut	Aluminum Alloy	20 mm	0.787 in	Copper Alloy	600 VAC, 850 V	Gold		32	18
Amphenol Air LB VG95328T2461SN	Crimp		Neoprene	Backshell	Cadmium	N	Receptacle, Female Sockets	Reverse Bayonet Lock	Military	Shielded	Metal	-55 °C	125 °C	7.5 A	Bulkhead - Front Side Nut	Aluminum Alloy			Copper Alloy	600 VAC, 850 V	Gold	61	61	24	1.134 in	28.8 mm
Amphenol Air LB VG95328T1210PXJ	Crimp		Neoprene	Backshell	Zinc-Tin	X	Male Pins, Receptacle	Reverse Bayonet Lock	Military	Shielded	Metal	-55 °C	125 °C	7.5 A	Bulkhead - Front Side Nut	Aluminum Alloy			Copper Alloy	600 VAC, 850 V	Gold	10					Black
Amphenol Air LB VG95328T1832SN	Crimp		Neoprene	Backshell	Cadmium	N	Receptacle, Female Sockets	Reverse Bayonet Lock	Military	Shielded	Metal	-55 °C	125 °C	7.5 A	Bulkhead - Front Side Nut	Aluminum Alloy	20 mm	0.787 in	Copper Alloy	600 VAC, 850 V	Gold		32	18
Amphenol Air LB VG95328T2461SNJ	Crimp		Neoprene	Backshell	Zinc-Tin	N	Receptacle, Female Sockets	Reverse Bayonet Lock	Military	Shielded	Metal	-55 °C	125 °C	7.5 A	Bulkhead - Front Side Nut	Aluminum Alloy			Copper Alloy	600 VAC, 850 V	Gold	61	61	24	1.134 in	28.8 mm	Black
Amphenol Air LB VG95328T2255PNJ	Crimp		Neoprene	Backshell	Zinc-Tin	N	Male Pins, Receptacle	Reverse Bayonet Lock	Military	Shielded	Metal	-55 °C	125 °C	7.5 A	Bulkhead - Front Side Nut	Aluminum Alloy			Copper Alloy	600 VAC, 850 V	Gold	55 positions	55	22	1.024 in	26 mm	Black
Amphenol Air LB VG95328T1419SW	Crimp		Neoprene	Backshell	Cadmium	W	Receptacle, Female Sockets	Reverse Bayonet Lock	Military	Shielded	Metal	-55 °C	125 °C	7.5 A	Bulkhead - Front Side Nut	Aluminum Alloy	15.2 mm	0.598 in	Copper Alloy	600 VAC, 850 V	Gold	19						19	14
Amphenol Air LB VG95328T145SN	Crimp	14-5	Neoprene	Backshell	Cadmium	N	Receptacle, Female Sockets	Reverse Bayonet Lock	Military	Shielded	Metal	-55 °C	125 °C	13 A	Bulkhead - Front Side Nut	Aluminum Alloy	15.2 mm	0.598 in	Copper Alloy	900 VAC, 1250 VDC	Gold
Amphenol Air LB VG95328T8-3ASNJ	Crimp	8-3			Zinc-Tin	N	Receptacle, Female Sockets	Reverse Bayonet Lock	Military	Shielded		-55 °C	125 °C														Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 118.03
		10	$ 108.31
		25	$ 104.14
		50	$ 100.67
		100	$ 95.12

Description

General part information

VG953 Series

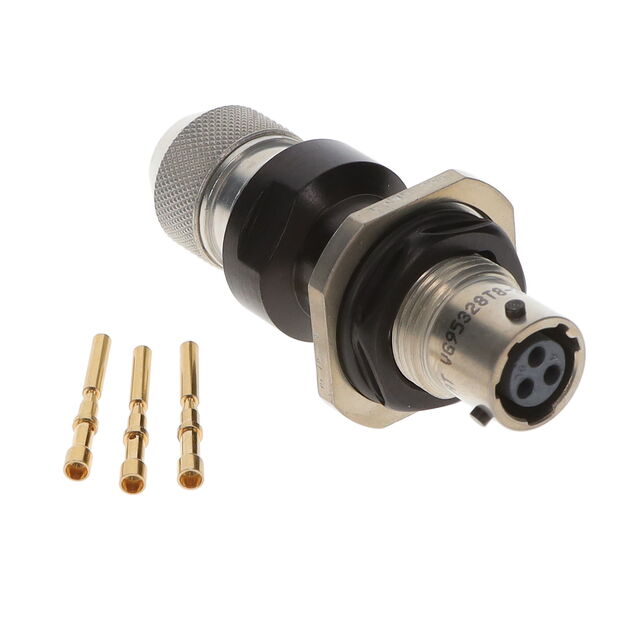

3 Position Circular Connector Receptacle, Female Sockets Crimp

Documents

Technical documentation and resources
