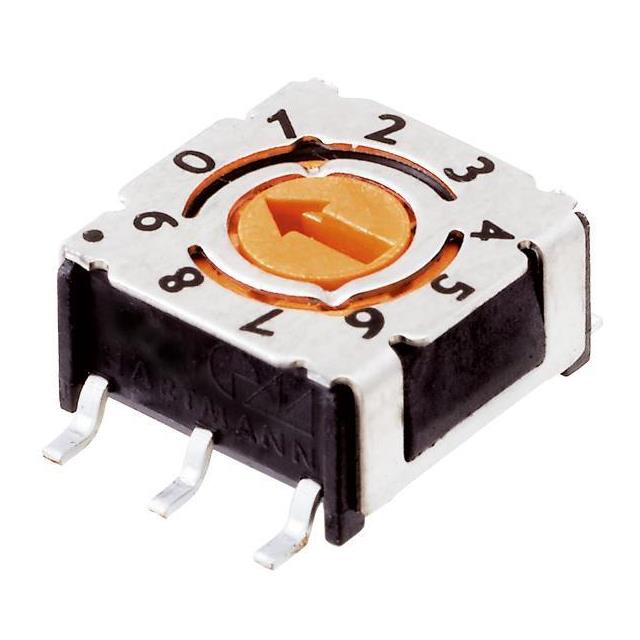

P36SMT 103
ActivePTR Hartmann
SWITCH ROTARY DIP HEXADECIMAL 1
P36SMT 103
ActivePTR Hartmann
SWITCH ROTARY DIP HEXADECIMAL 1
Description
General part information
P36SMT 103
Dip Switch Hexadecimal 16 Position Surface Mount Rotary for Tool Actuator 100mA 42VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | P36SMT 103 |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Rotary for Tool |
| Circuit | Hexadecimal |
| Contact Finish | Gold |
| Current Rating | 100 mA |
| Height Above Board | 0.152 in |
| Length | 0.291 in |
| Mechanical Life (Steps) | 25000 Steps |
| Mounting Type | Surface Mount |
| Number of Positions | 16 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -50 °C |
| Pitch | 0.1 in |
| Pitch Type | Full |
| Termination Style | Gull Wing |
| Voltage Rating | 42 V |
| Washable | Yes |
