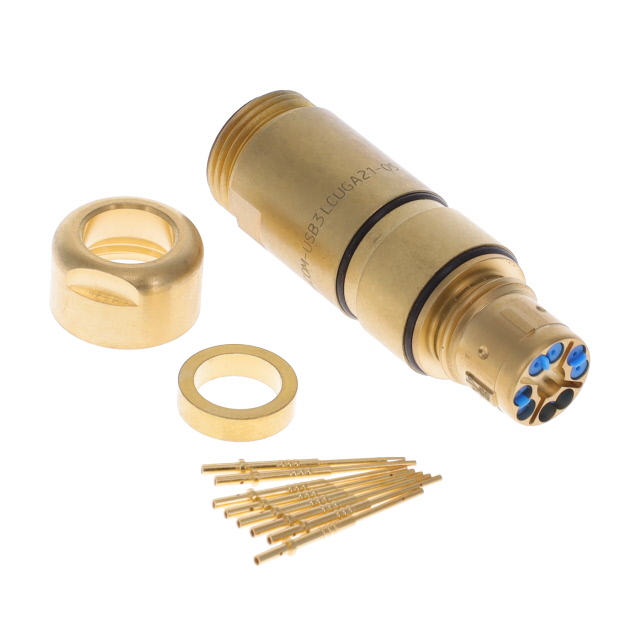

Specification	UCOMUSB3LCUGA

Applications	Military, Aerospace
Backshell Material, Plating	Brass
Cable Opening (Max)	0.295 in
Cable Opening (Min)	0.217 in
Connector Type	Receptacle, Female Sockets
Fastening Type	Push-Pull, Threaded
Features	Backshell
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	Keyed
Position Types	Data
Primary Material	Metal
Shell Material	Brass
Shielding	Unshielded
Termination	Crimp

UCOMUSB Series

Part	Shell Finish	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Connector Type	Color	Number of Positions	Position Types	Features	Orientation	Termination	Applications	Cable Opening (Min)	Cable Opening (Max)	Shielding	Primary Material	Fastening Type	Plating	Backshell Material	Shell Material	Mounting Feature	Backshell Material, Plating
McGill Microwave Systems UCOMUSB3PPCBGA	Black Nickel	125 °C	-55 °C	Free Hanging (In-Line)	Male Pins Plug	Black	8	Data	Backshell Coupling Nut	Keyed	Crimp	Aerospace Military	0.217 in	0.295 in	Unshielded	Metal	Push-Pull	Black Nickel	Brass	Brass
McGill Microwave Systems UCOMUSB3LCBB	Black Nickel	125 °C	-55 °C	Free Hanging (In-Line)	Female Sockets Receptacle	Black	8	Data	Heat Shrink	Keyed	Crimp	Aerospace Military			Unshielded	Metal	Push-Pull Threaded			Brass
McGill Microwave Systems UCOMUSB3PPSUB		125 °C	-55 °C	Free Hanging (In-Line)	Male Pins Plug		8	Data	Coupling Nut Heat Shrink	Keyed	Solder Cup	Aerospace Military			Unshielded	Metal	Push-Pull			Brass
McGill Microwave Systems UCOMUSB3PPCBB	Black Nickel	125 °C	-55 °C	Free Hanging (In-Line)	Male Pins Plug	Black	8	Data	Coupling Nut Heat Shrink	Keyed	Crimp	Aerospace Military			Unshielded	Metal	Push-Pull			Brass
McGill Microwave Systems UCOMUSB3RPB	Black Nickel	125 °C	-55 °C	Panel Mount Through Hole	Female Sockets Receptacle	Black	8	Data		Keyed	Solder	Aerospace Military			Unshielded	Metal	Push-Pull			Brass	Bulkhead Front Side Nut
McGill Microwave Systems UCOMUSB3PTSBB	Black Nickel	125 °C	-55 °C	Free Hanging (In-Line)	Male Pins Plug	Black	8	Data	Coupling Nut Heat Shrink	Keyed	Solder Cup	Aerospace Military			Unshielded	Metal	Threaded			Brass
McGill Microwave Systems UCOMUSB3PTSGGA	Olive Drab Cadmium	125 °C	-55 °C	Free Hanging (In-Line)	Male Pins Plug	Olive Drab	8	Data	Backshell Coupling Nut	Keyed	Solder Cup	Aerospace Military	0.217 in	0.295 in	Unshielded	Metal	Threaded			Brass		Brass Olive Drab Cadmium
McGill Microwave Systems UCOMUSB3LCBGA	Black Nickel	125 °C	-55 °C	Free Hanging (In-Line)	Female Sockets Receptacle	Black	8	Data	Backshell	Keyed	Crimp	Aerospace Military	0.217 in	0.295 in	Unshielded	Metal	Push-Pull Threaded	Black Nickel	Brass	Brass
McGill Microwave Systems UCOMUSB3PPSUGA		125 °C	-55 °C	Free Hanging (In-Line)	Male Pins Plug		8	Data	Backshell Coupling Nut	Keyed	Solder Cup	Aerospace Military	0.217 in	0.295 in	Unshielded	Metal	Push-Pull			Brass		Brass
McGill Microwave Systems UCOMUSB3PTCGB	Olive Drab Cadmium	125 °C	-55 °C	Free Hanging (In-Line)	Male Pins Plug	Olive Drab	8	Data	Coupling Nut Heat Shrink	Keyed	Crimp	Aerospace Military			Unshielded	Metal	Threaded			Brass
