AD-NM-QCM-PM-2.5

Active

Amphenol Times Microwave Systems

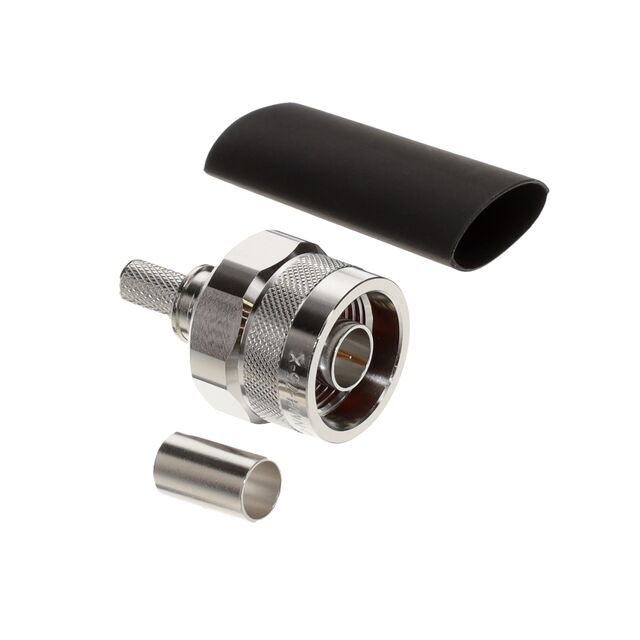

N MALE INSTA-CHANGE ADAPTER

Search across all available documentation for this part.

Active

Amphenol Times Microwave Systems

N MALE INSTA-CHANGE ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	AD-NM-QCM-PM-2.5

Adapter Series	N to QC
Adapter Type	Plug to Plug
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	N Plug, Male Pin
Convert To (Adapter End)	QC Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	2.5 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

N MALE INSTA-CHANGE ADAPTER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Mating Cycles	Adapter Type	Conversion Type	Convert To (Adapter End)	Center Contact Plating	Dielectric Material	Body Material	Center Contact Material	Frequency - Max [Max]	Mounting Feature	Center Gender	Impedance	Convert From (Adapter End)	Adapter Series	Style	Fastening Type
Amphenol Times Microwave Systems AD-NM-QCM-PM-2.5	-65 ░C	165 °C	White Bronze	500	Plug to Plug	Between Series	Male Pin, QC Plug	Gold	Polytetrafluoroethylene (PTFE)	Brass	Beryllium Copper	2.5 GHz	Flange	Male to Male	50 Ohms	N Plug, Male Pin	N to QC	Straight	Snap-On, Threaded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Plug, Male Pin To QC Plug, Male Pin 50 Ohms
