929505-7
ActiveTE Connectivity AMP Connectors

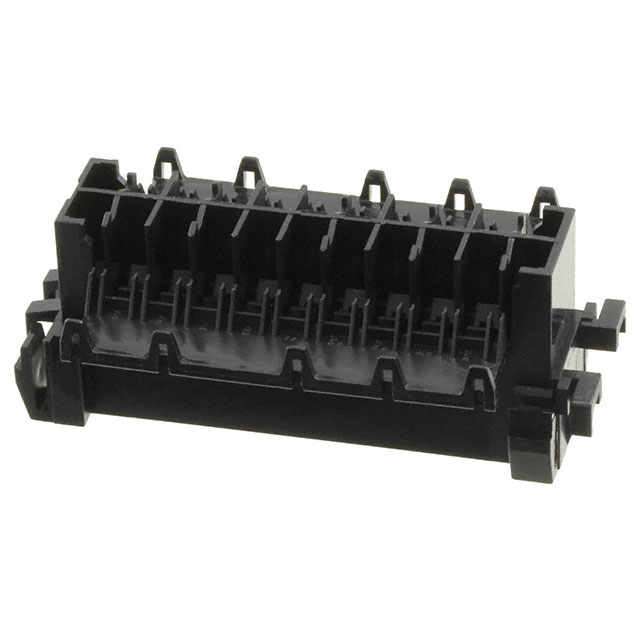

CONN PLUG HSG 22POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
929505-7
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 22POS 5.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 929505-7 | 929505 Series |
|---|---|---|
| Color | Black | Natural, Black |
| Connector Type | Plug | Plug |
| Contact Termination | Crimp | Crimp |
| Contact Type | Tab | Tab |
| Fastening Type | Locking Ramp | Locking Ramp |
| Insulation Material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 22 positions | 8 - 22 positions |
| Number of Rows | 2 | 2 |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
| Row Spacing | 0.22 in | 0.22 in |
| Row Spacing | 5.6 mm | 5.6 mm |
929505 Series
CONN PLUG HSG 22POS 5.00MM
| Part | Pitch [x] | Pitch [x] | Number of Positions | Row Spacing | Row Spacing | Fastening Type | Color | Number of Rows | Note | Connector Type | Contact Termination | Mounting Type | Contact Type | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-929505-7 | 5 mm | 0.197 in | 22 positions | 0.22 in | 5.6 mm | Locking Ramp | Natural | 2 | Contacts Not Included | Plug | Crimp | Free Hanging (In-Line) | Tab | Polybutylene Terephthalate (PBT) |
TE Connectivity AMP Connectors 929505-6 | 5 mm | 0.197 in | 18 | 0.22 in | 5.6 mm | Locking Ramp | Black | 2 | Contacts Not Included | Plug | Crimp | Free Hanging (In-Line) | Tab | Polybutylene Terephthalate (PBT) |
TE Connectivity AMP Connectors 929505-7 | 5 mm | 0.197 in | 22 positions | 0.22 in | 5.6 mm | Locking Ramp | Black | 2 | Contacts Not Included | Plug | Crimp | Free Hanging (In-Line) | Tab | Polybutylene Terephthalate (PBT) |
TE Connectivity AMP Connectors 929505-3 | 5 mm | 0.197 in | 8 | 0.22 in | 5.6 mm | Locking Ramp | Black | 2 | Contacts Not Included | Plug | Crimp | Free Hanging (In-Line) | Tab | Polybutylene Terephthalate (PBT) |
TE Connectivity AMP Connectors 929505-5 | 5 mm | 0.197 in | 14 | 0.22 in | 5.6 mm | Locking Ramp | Black | 2 | Contacts Not Included | Plug | Crimp | Free Hanging (In-Line) | Tab | Polybutylene Terephthalate (PBT) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.71 | |
| 10 | $ 1.56 | |||
| 25 | $ 1.52 | |||
| 50 | $ 1.50 | |||
| 100 | $ 1.40 | |||
| 400 | $ 1.37 | |||
| 800 | $ 1.25 | |||
| 1200 | $ 1.12 | |||
| 2800 | $ 1.03 | |||
Description
General part information
929505 Series
22 Rectangular Connectors - Housings Plug Black 0.197" (5.00mm)
Documents
Technical documentation and resources
