Description
General part information

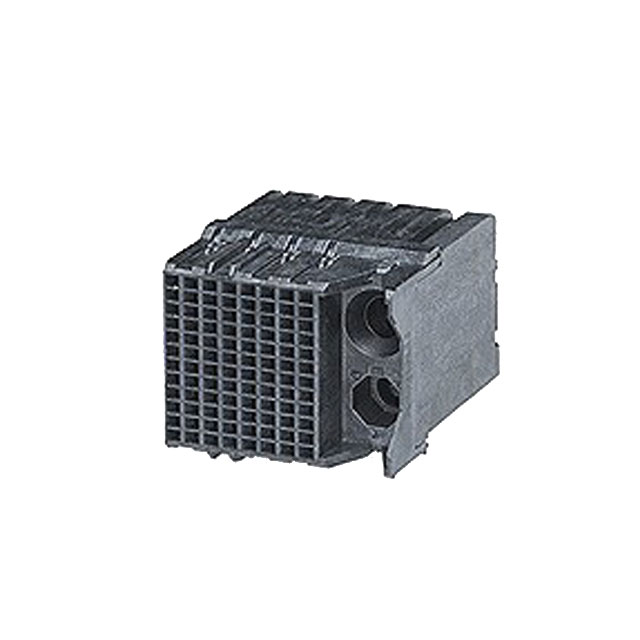

0761605038
CONN RCPT IMPACT 96POS EDGE MNT
Technical Specifications
Parameters and characteristics for this part
| Specification | 0761605038 |
|---|---|
| Color | Black |
| Connector Style | Impact, Guide Right |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Differential Pairs (Typical) | 32 |
| Features | Board Guide |
| Mounting Type | Right Angle, Through Hole, Board Edge |
| Number of Columns | 8 |
| Number of Positions | 96 |
| Number of Positions Loaded | All |
| Number of Rows | 12 |
| Pitch | 0.053 in |
| Termination | Press-Fit |
