Description
General part information

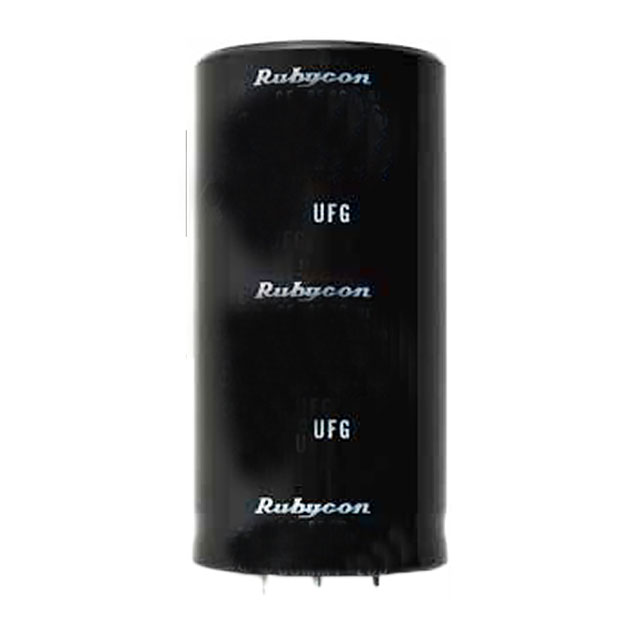

450UFG680MBN35X65
680 µF 450 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 450UFG680MBN35X65 |
|---|---|
| Applications | General Purpose |
| Capacitance | 680 µF |
| Height - Seated (Max) | 2.638 in |
| Lead Spacing | 0.886 in |
| Lifetime | 10000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 6.328 A, 4.52 A |
| Size / Dimension Diameter | 1.378 in |
| Tolerance | 20 % |
| Voltage - Rated | 450 V |
