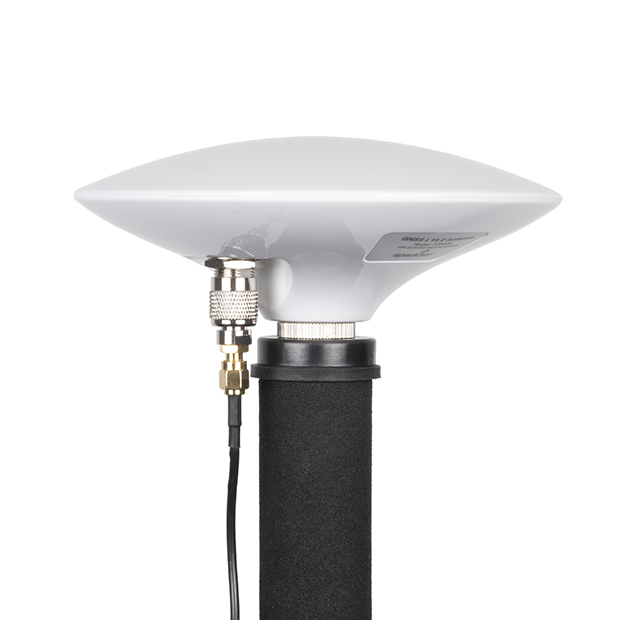

SPX-17751
1.238GHz, 1.585GHz Beidou, GLONASS, GNSS, GPS Dome RF Antenna 1.198GHz ~ 1.278GHz, 1.555GHz ~ 1.615GHz 5dBi TNC Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | SPX-17751 |
|---|---|
| Antenna Type | Dome |
| Applications | GLONASS, GNSS, BEIDOU, GPS |
| Features | LNA |
| Frequency (Band) | 1.585 GHz |
| Frequency (Center) | 1.238 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Band 1) Maximum | 1.278 GHz |
| Frequency Range (Band 1) Minimum | 1.198 GHz |
| Frequency Range (Band 2) Maximum | 1.615 GHz |
| Frequency Range (Band 2) Minimum | 1.555 GHz |
| Gain | 5 dBi |
| Height (Max) | 2.185 in |
| Ingress Protection | IP67 |
| Mounting Type | Panel Mount |
| Number of Bands | 2 |
| RF Family/Standard | Navigation |
| Termination | TNC |
| VSWR | 2, 1.5 |
| VSWR Maximum | 2 |
| VSWR Minimum | 1.5 |
