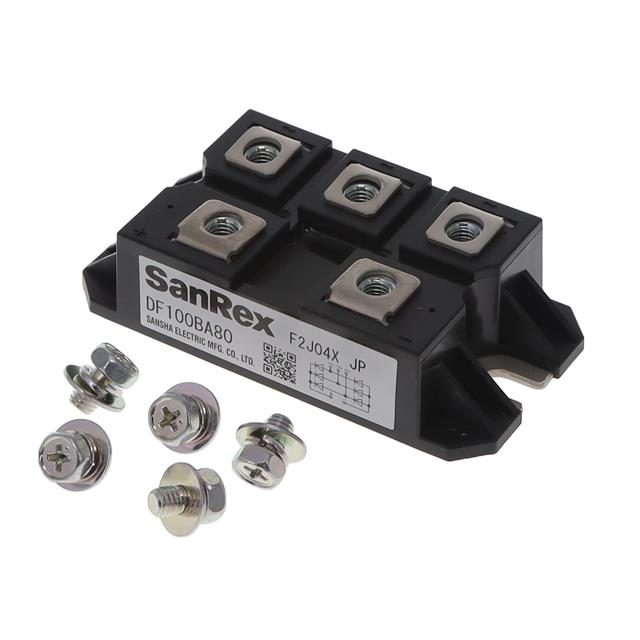

DF100BA80

Active

SanRex Corporation

DIODE MODULE 800V 100A

Search across all available documentation for this part.

Active

SanRex Corporation

DIODE MODULE 800V 100A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Three Phase Standard 800 V Chassis Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	DF100BA80	DF100 Series

Current - Average Rectified (Io)	100 A	100 A
Current - Reverse Leakage @ Vr	10 mA	8 - 15 mA
Diode Type	Three Phase	Three Phase
Mounting Type	Chassis Mount	Through Hole, Chassis Mount
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	5-PowerDIP Module, Module
Supplier Device Package	-	5-DIP
Technology	Standard	Standard
Voltage - Forward (Vf) (Max) @ If	1.2 V	1.2 - 1.35 V
Voltage - Peak Reverse (Max)	-	1.6 kV
Voltage - Peak Reverse (Max) [Max]	800 V	800 V

DIODE MODULE 1600V 100A

Part	Technology	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Mounting Type	Diode Type	Current - Reverse Leakage @ Vr	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Peak Reverse (Max)	Package / Case	Voltage - Peak Reverse (Max) [Max]
SanRex Corporation DF100NB160	Standard	5-DIP	1.35 V	100 A	Through Hole	Three Phase	8 mA	150 °C	-40 °C	1.6 kV	5-PowerDIP Module
SanRex Corporation DF100LB80	Standard		1.3 V	100 A	Chassis Mount	Three Phase	12 mA	150 °C	-40 °C		Module	800 V
SanRex Corporation DF100LA160	Standard		1.3 V	100 A	Chassis Mount	Three Phase	12 mA	150 °C	-40 °C	1.6 kV	Module
SanRex Corporation DF100LA80	Standard		1.3 V	100 A	Chassis Mount	Three Phase	12 mA	150 °C	-40 °C		Module	800 V
SanRex Corporation DF100LB160	Standard		1.3 V	100 A	Chassis Mount	Three Phase	12 mA	150 °C	-40 °C	1.6 kV	Module
SanRex Corporation DF100AA160	Standard		1.2 V	100 A	Chassis Mount	Three Phase	15 mA	150 °C	-40 °C	1.6 kV	Module
SanRex Corporation DF100BA80	Standard		1.2 V	100 A	Chassis Mount	Three Phase	10 mA	150 °C	-40 °C		Module	800 V
