93351403
ActiveSAB North America

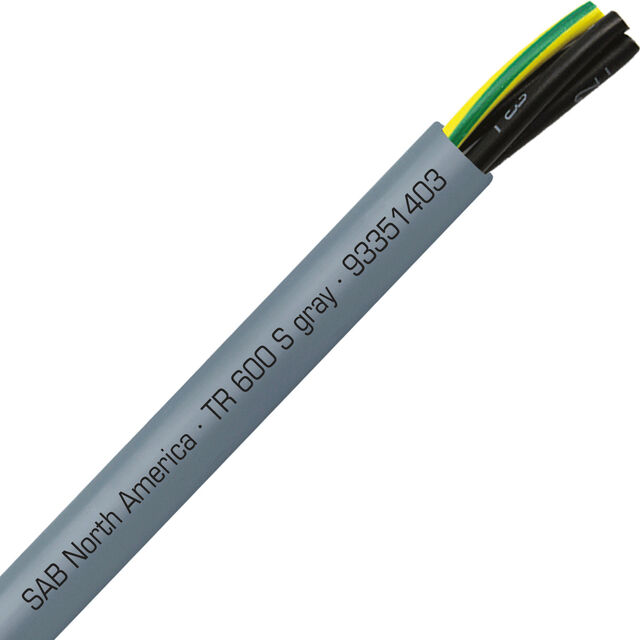

CABLE 3COND 14 AWG GRAY 1=1FT
93351403
ActiveSAB North America
CABLE 3COND 14 AWG GRAY 1=1FT
Description
General part information
93351403
3 Conductor Multi-Conductor Cable Gray 14 AWG Enter Number of Feet in Order Quantity
Technical Specifications
Parameters and characteristics for this part
| Specification | 93351403 |
|---|---|
| Cable Type | Conductor, Multi |
| Conductor Insulation | Nylon, Poly-Vinyl Chloride (PVC), Polyamide (PA) |
| Conductor Material | Copper, Bare |
| Features | Oil Resistant, UV Resistant |
| Jacket (Insulation) Diameter | 0.364 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Gray |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 3 |
| Operating Temperature | 90 °C |
| Usage | Industrial, Signal, Control |
| Voltage | 600 V |
| Wire Gauge | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
