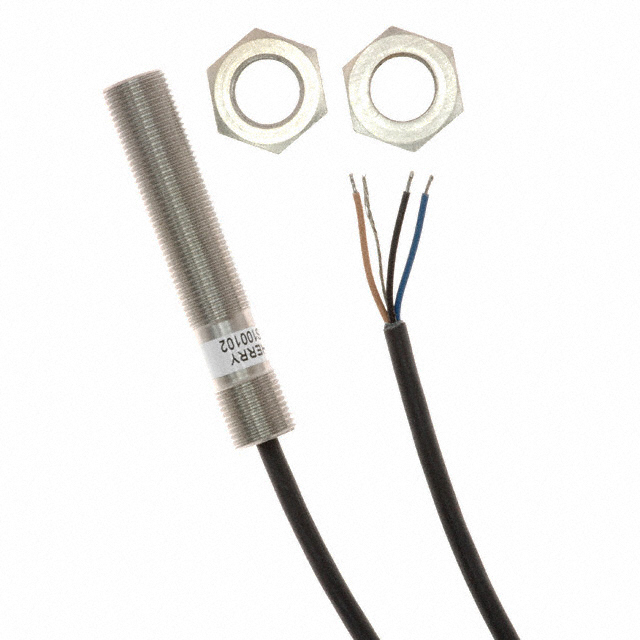

GS100102
ActiveSPEED SENSOR, GS1001 SERIES, HALL EFFECT, GEAR TOOTH, WIRE LEADS, M12, 5 TO 24 VDC, SINK OUTPUT
GS100102
ActiveSPEED SENSOR, GS1001 SERIES, HALL EFFECT, GEAR TOOTH, WIRE LEADS, M12, 5 TO 24 VDC, SINK OUTPUT
Description
General part information
GS100102
GS100102 is a GS1002 series gear tooth speed sensor. It is a hall Effect device designed for use in applications where ferrous edge detection/near zero speed sensing is needed. This provides a sinking current output. Typical application includes speedometers, anti-lock braking systems, exercise equipment, CNC machine tools.
Technical Specifications
Parameters and characteristics for this part
| Specification | GS100102 |
|---|---|
| Actuator Material | Gear Tooth, Ferrous Metals |
| Frequency | 15 kHz |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Digital |
| Package / Case | Barrel, Stainless Steel |
| Termination Style | Wire Leads |
| Type | Hall Effect Sensor |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 5 V |
