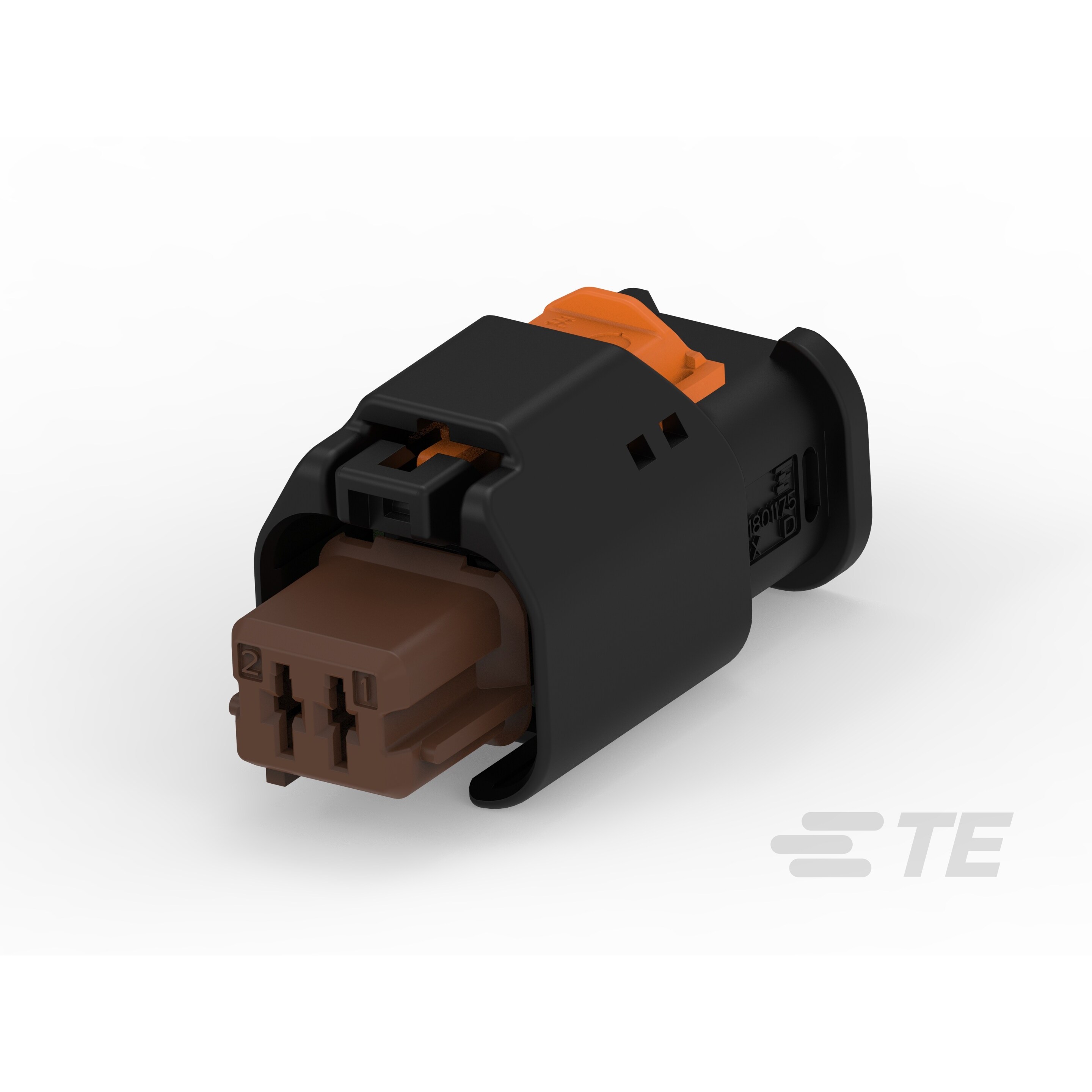

1-1801175-1
ActiveTE Connectivity AMP Connectors
2W RECEPTACLE HP CONNECTOR BLACK
1-1801175-1
ActiveTE Connectivity AMP Connectors
2W RECEPTACLE HP CONNECTOR BLACK
Description
General part information
1-1801175-1
2 Position Housing, Housing for Female Terminals, Wire-to-Wire, 3.33 mm [.13 in] Centerline, Sealable, Black, Wire & Cable, Sensor Flat Contact System
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1801175-1 |
|---|---|
| Color | Black |
| Connector Type | Housing for Female Insert |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Features | Connector Position Assurance (CPA), Terminal Position Assurance (TPA) |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.131 in |
